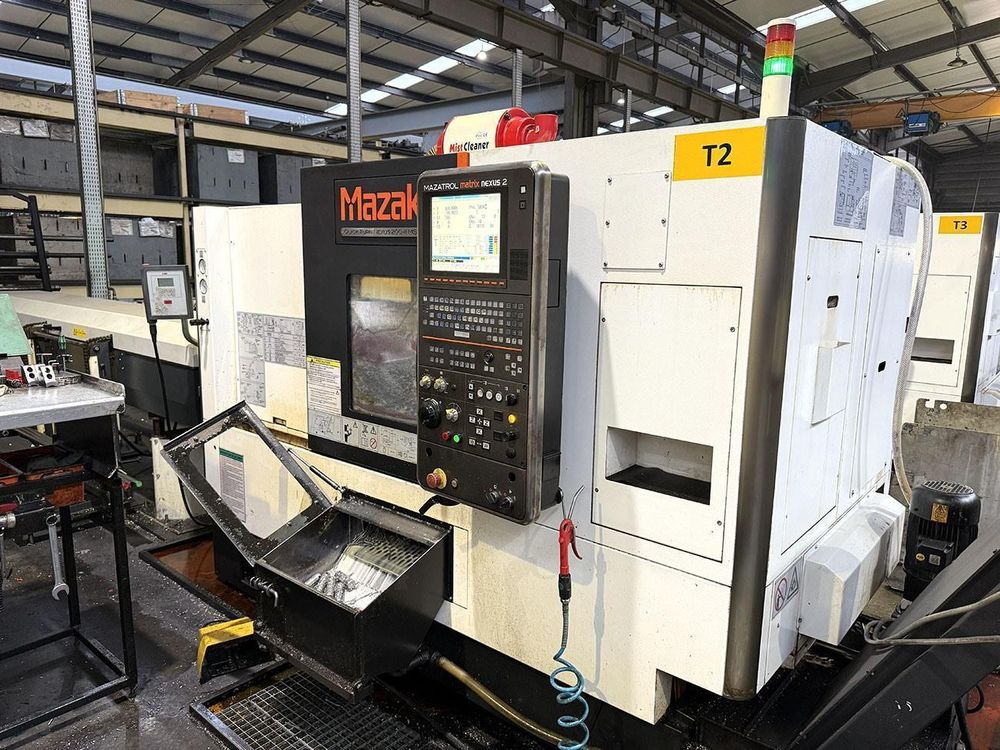

Mazak Mazatrol Matrix Nexus 2 5000 rpm QT Nexus 200-II MS Ø 380 mm CNC 2 Axis

X-axis travel: 234 mm
Z-axis travel: 625 mm
Control: Mazatrol Matrix Nexus 2
Spindle bore: 76 mm
Swing over bed: 380 mm
Max swing: 675 mm
Swing over cross slide: 350 mm
Max machining diameter: 380 mm
Main spindle motor power: 26 kW
Main spindle speed: 5000 rpm
Sub spindle motor power: 11 kW
Sub spindle speed: 6000 rpm
Milling spindle speed: 4500 rpm
Milling motor power: 5.5 kW
Milling torque: 35 Nm
Tool turret stations: 12

Tool changer
Powered tool turret
Tool setter
Chip conveyor
Bar feeder optional
Mist collector optional
Parts catcher optional
