Mazak Mazatrol Matrix Nexus 2000 RPM Nexus QTN 450-IIM/1000 3 Axis

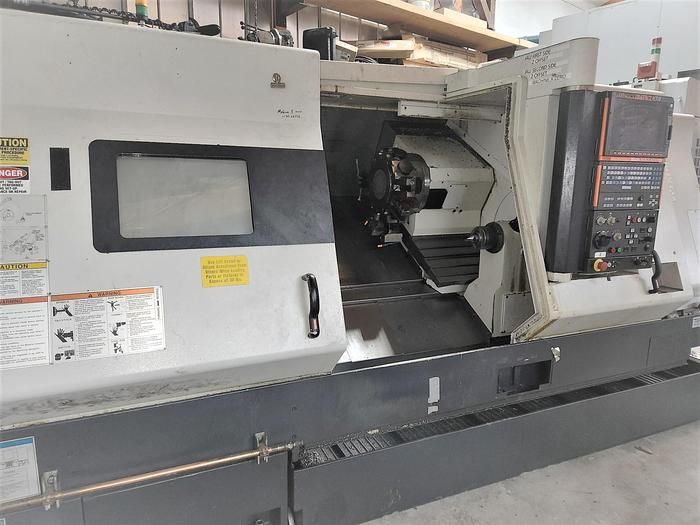

Mazak Nexus QTN 450-IIM/1000
2008

Full C Axis Spindle Rotation
Live Milling/Drilling Capability
20" SMW Autoblock HiGrip HGN-500-163-3 3 Jaw Manual Big Bore Chuck with 6.5" Hole
Quick Change Jaw System
Rear of Spindle Prepped for 2nd Chuck
Automatic Tool Eye
Programmable Tailstock
Chip Conveyor
Auto Tool Life Management
Mill Synchronous Tapping
EIA/ISO Input Function
Card Interface
USB Port Interface
RS 232 Port Interface
All Available Manuals
Approximately (40) Static Tool Holders
(1) Live Tool Holder


Machine Control Mazatrol Matrix Nexus
Chuck Size 20" 3-Jaw Manual Chuck
Maximum Swing 33.26"
Maximum Cutting Diameter 22.83"
Maximum Turning Length 43.2"
Distance Between Centers 43.55"
X-Axis Travel 13.38"
Z-Axis Travel 43.2"
C Axis Spindle Rotation .001 Degree
Spindle Nose / Bore / Bar Capacity A2-15 / 7.23" / 6.5"
Spindle Motor 50 HP
Spindle Torque 1217 ft/lbs.
Spindle Speeds 2,000 RPM
Rotary Tool Speed / Rotary Motor 6,000 RPM / 10 HP
Rapid Traverse Rates 1181 IPM
Tailstock Quill Diameter / Center 3.94" / #5 MT
Number of Turret Positions 12 Sided / 24 Positions
Machine Dimensions LxWxH 144" x 90" x 80"
Machine Weight 20,300 lbs
