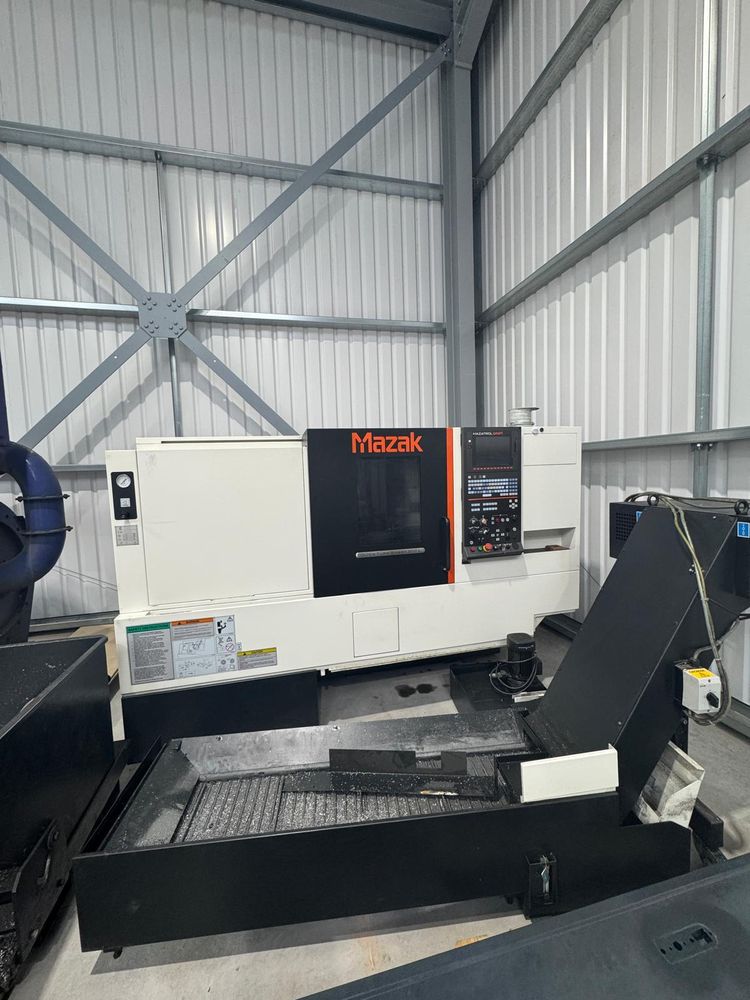

Mazak MAZATROL SMART 5000 rpm QUICK TURN SMART 200L 2 Axis

Control: MAZATROL SMART
X axis travel: 195 mm
Z axis travel: 1105 mm
Rapid feedrates (X/Z): 30 / 33 m/min
Bar capacity: 65 mm
Swing: 660 mm
Swing over cross-slide: 343 mm
Maximum cutting diameter: 350 mm
Maximum cutting length: 1060 mm
Chuck size: 8" (200 mm)
Spindle speed: 5000 rpm
Spindle motor power: 18.5 / 15 kW
Spindle nose: A2-6
Tool size: 25 x 25 mm
Turret positions: 12 station
Tailstock body travel: 1075 mm
Boring bar holder diameter: 40 mm
Machine dimensions: 3385 x 1720 x 1700 mm
Machine weight: 5600 kg

Equipped With
3-jaw chuck
Coolant system
Interlocked guards
Low voltage light
Swarf conveyor
Tailstock
Tool setter
