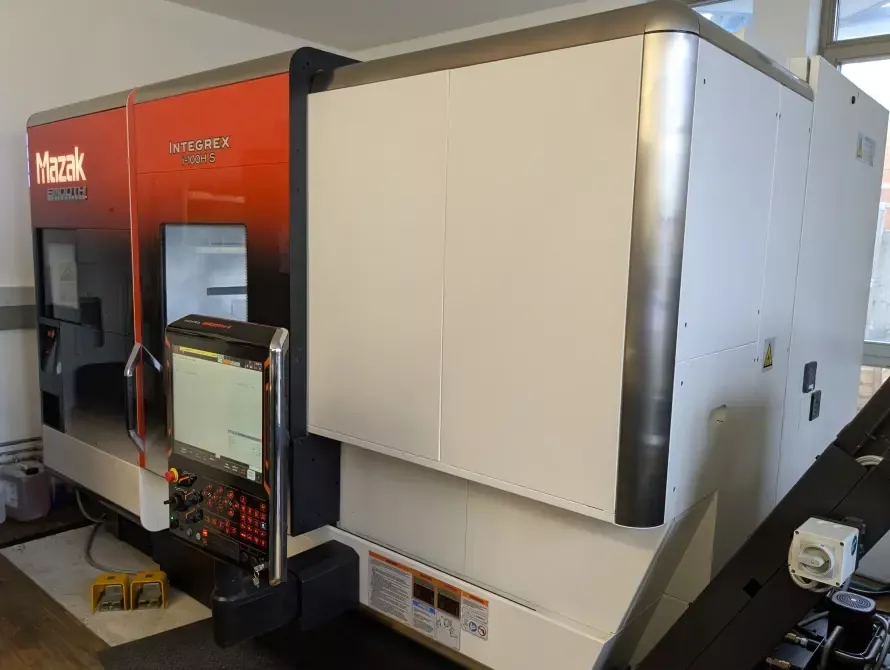

Mazak Mazatrol Smooth Ai 6000 rpm INTEGREX i-100 HS 5 Axis

X-axis travel 535 mm
Y-axis travel 210 mm
Z-axis travel 900 mm
B-axis travel -30° to 210°
C-axis 0.0001°

Control Mazatrol Smooth Ai
5-axis simultaneous machining
Max. rotary diameter 600 mm
Max. turning length 850 mm
Max. bar capacity 52 mm
Main spindle drive power 11 kW
Main spindle speed 6000 rpm
Main spindle nose A2-5
Counter spindle drive power 11 kW
Counter spindle speed 6000 rpm
Counter spindle nose A2-5
Milling spindle drive power 12 kW
Milling spindle speed 12000 rpm
Tool magazine capacity 38 tools
Tool interface Capto C6
Coolant system Knoll KF150/950 compact filter system
High-pressure pump 70 bar
Chip conveyor Mayfran MT10, right ejection
5-axis machining package for Smooth Ai
EIA/ISO 5-axis simultaneous
Tool tip control 5-axis simultaneous machining
Spline fine interpolation
5-axis spline interpolation
Path error suppression
Cylindrical interpolation
5-axis machining on counter spindle
Synchronized thread cutting G84.2/G84.3
Thread re-cutting function
Mazak API
Counter spindle full C-axis synchronization C1 + C2
Linear scale X-axis
Linear scale Y-axis
Renishaw RMP60 touch probe
Monitoring system Mazak Monitoring B
3-jaw chuck main spindle Kitagawa BB206
3-jaw chuck counter spindle Kitagawa B206
