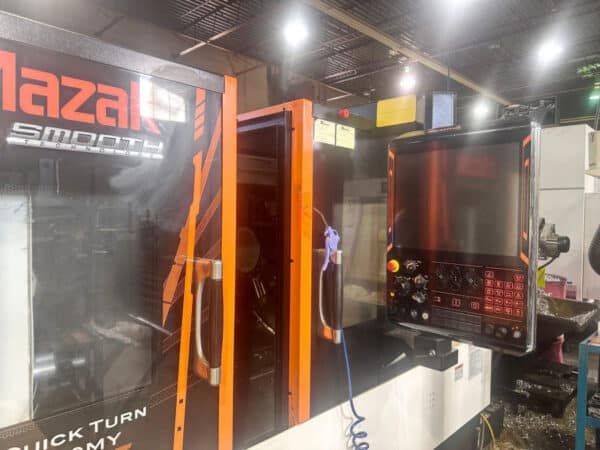

Mazak Mazatrol Smooth CNC Control 4,000 RPM QUICK TURN 250MY 4 Axis

X-Axis Travel: 9.21"
Y-Axis Travel: ±1.96"
Z-Axis Travel: 42.9"
C-Axis Rotation: 360°
Rapid Traverse X/Z: 1,181 / 1,299 in/min.
Rapid Traverse Y: 826 in/min.
4 Axis
Y-Axis
Programmable Tailstock
Automatic Tool Presetter
C-Axis
Chip Conveyor
Scale Feedback
Synchronized Mill Tapping
Bar Capacity: 3.15"
Maximum Swing: 27.36"
Turning Diameter: 14.96"
Machining Length: 39"
Spindle Bore: 3.58"
Spindle Nose: A2-8
Maximum Spindle Speed: 4,000 RPM
Spindle Power: 25 HP
Milling Tool Speed: 5,000 RPM
Milling Tool Power: 35 HP
10" 3-Jaw Hydraulic Chuck
12 Position Turret
Tailstock
Tailstock Travel: 42.32"
Tailstock Taper: MT5
Live Tooling
Dimensions: 139.76" x 78.54" x 73.11"
Weight: 14,500 lbs
