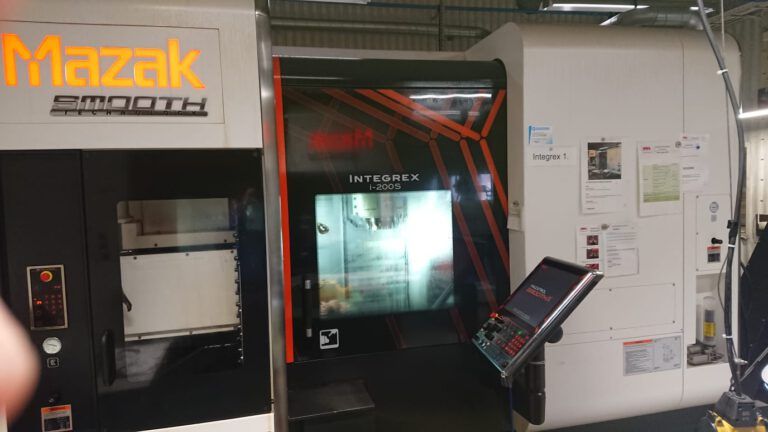

Mazak Mazatrol Smooth X, 5-axis simultaneous 5000 rpm INTEGREX i-200S 4 Axis

X-axis Travel – 615 mm
Y-axis Travel – 260 mm
Z-axis Travel – 1077 mm
B-axis Travel – -30° to 210°

Rotary Diameter – 658 mm
Max Turning Length – 1011 mm
Rapid Traverse – X/Y/Z 50/40/50 m/min
Control – Mazatrol Smooth X, 5-axis simultaneous

Main Spindle Drive Power – 22/15 kW
Main Spindle Max Speed – 5000 rpm
Main Spindle Nose – A2-6
Main Spindle C-axis – 0.0001°

Sub Spindle Drive Power – 18.5/15 kW
Sub Spindle Max Speed – 5000 rpm
Sub Spindle Nose – A2-6
Sub Spindle C-axis – 0.0001°

Milling Spindle Drive Power – 22/15 kW
Milling Spindle Max Speed – 12,000 rpm
Tool Magazine – 36 positions, Capto C6
Coolant Pressure – 15 bar internal, prepared up to 70 bar
Tool Measurement – Tooleye
Chip Conveyor – Discharge right
Barfeeder Interface
Barfeeder EMT Super 80
Automatic Parts Catcher
Mazak Monitoring B
Renishaw RMP600
Cylinder Interpolation

5-axis Package for Main and Sub Spindle Machining
EIA/ISO 5-axis Simultaneous Machining
Tool Tip Control 5-axis Simultaneous Machining
Spline Fine Interpolation
5-Axis Spline Interpolation
Flash Tool 24 Positions
Synchronous Milltapp
3-jaw Chuck Kitagawa BB208
