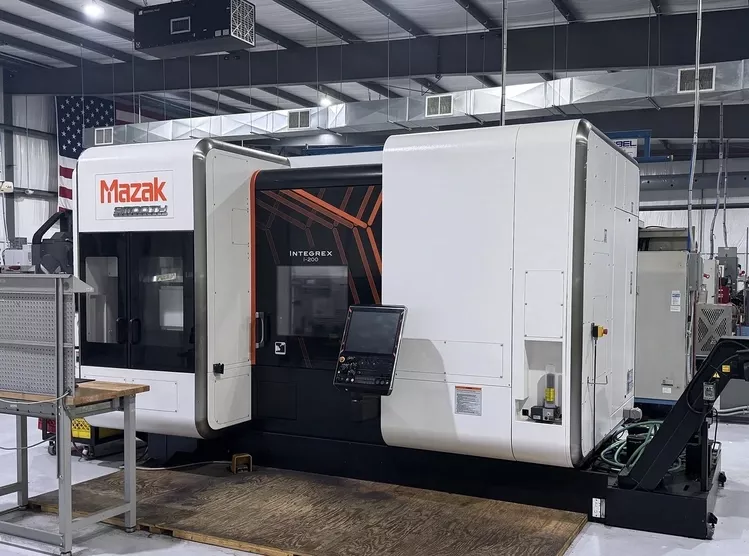

Mazak Mazatrol Smooth X CNC 3,300 RPM INTEGREX I-200-1000U 5 Axis

X1-Axis Travel: 24.2"
Z1-Axis Travel: 42.4"
Y1-Axis Travel: 10.24"

Rapid Traverse Rate X1: 1969 ipm
Rapid Traverse Rate Z1: 1969 ipm
Rapid Traverse Rate Y1: 1575 ipm

B-Axis Head Travel: -30 to 210 Degrees
B-Axis Head Indexing: 0.0001
B-Axis Milling Spindle Taper: Capto C6
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Horsepower: 30 HP
C-Axis Indexing: 0.00

Swing Over Bed: 25.4"
Turning Diameter: 25.4"
Turning Length: 39.8"
Spindle Nose 1: A2-8
Spindle Bore Diameter 1: 3.4"
Bar Capacity 1: 3"
Spindle Speeds 1: 3,300 RPM
Spindle Horsepower 1: 40 HP
Programmable Tailstock: Yes
Tailstock Travel: 40.39"
Chuck Size 1: 8"
ATC for Milling Spindle: 72
Tool Diameter: 3.54" / 4.92"
Tool Length: 11.8"
Tool Weight: 22 lb
Machine Weight: 26,000 lb
Tool Radius Compensation (G41.5, G42.5)
Chip Conveyor
