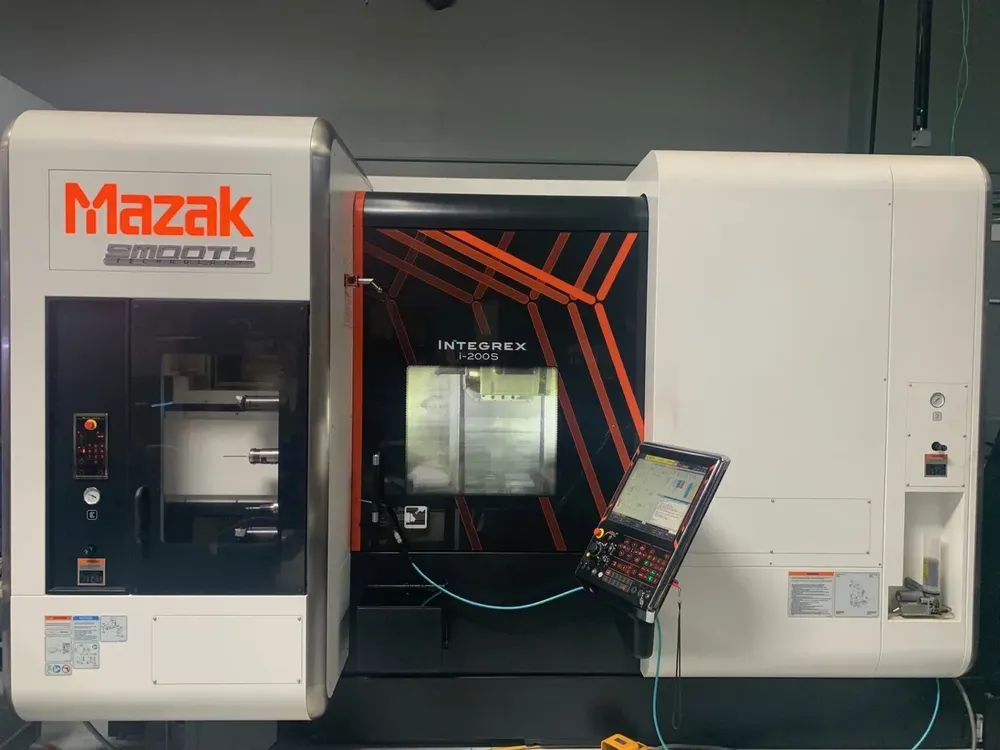

Mazak Mazatrol Smooth X CNC Control 5,000 RPM I200S 5 Axis

X-Axis Travel 24.21"
Z-Axis Travel 42.4"
Y-Axis Travel 10.24"
W-Axis Travel 41.97"
Rapid Traverse Rate X/Z 1,969 IPM
Rapid Traverse Rate Y-Axis 40 IPM
Rapid Traverse Rate W-Axis 30 IPM
Main Spindle C Axis 0.001 Degree Increments
Sub Spindle C Axis 0.001 Degree Increments
Mazatrol Smooth X CNC Control
5-Axis Machining Package
Gear Hobbing & Milling Software
Renishaw RMP-600 Work Measuring System Probe
Main Spindle Bar Capacity 2.56"
Max Swing 25.91"
Max Turning Diameter 25.91"
Max Turning Length 39.8"
Main Spindle Speed 5,000 RPM
Main Spindle Nose A2-6
Sub Spindle Bar Capacity 2"
Sub Spindle Speed 5,000 RPM
Sub Spindle Nose A2-6
Milling Spindle Motor 30 HP
Milling Spindle Speed 12,000 RPM
Spindle Taper Capto C6
Main Spindle Chuck Size 8"
Sub Spindle Chuck Size 8"
36 Tool ATC
Maximum Tool Diameter 4.92"
Maximum Tool Length 15.75"
Dimensions 157" x 110" x 107"
Weight 28,881 LBS
Sub-Spindle
(2) 8" Chucks
Approx. $40K Tooling Included
