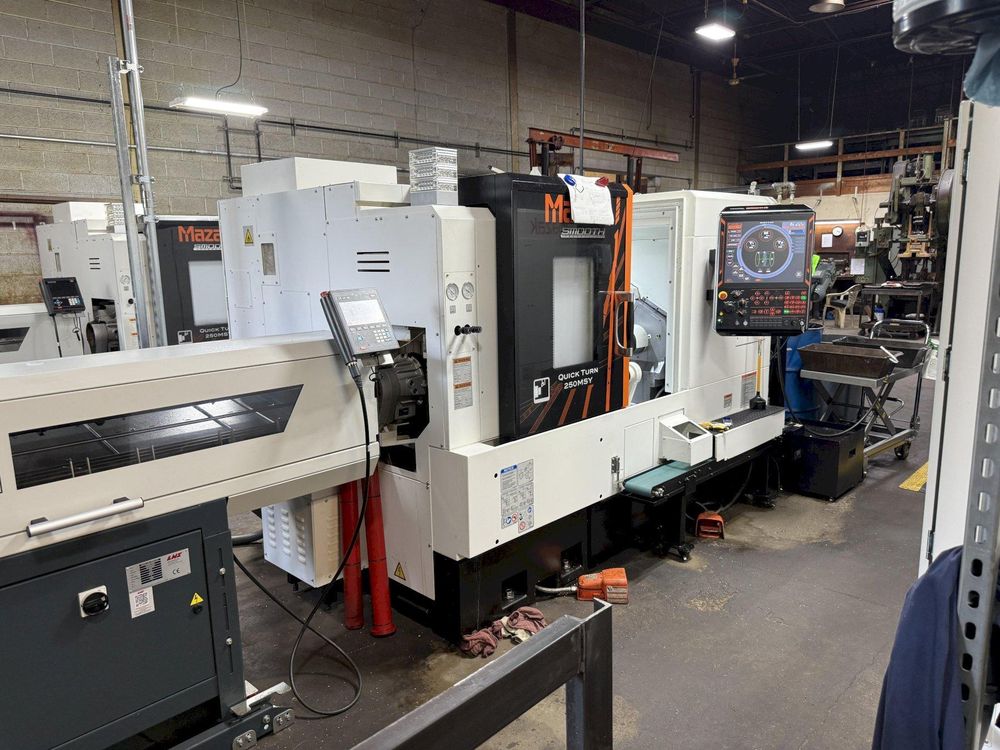

Mazak Mazatrol SmoothG 4,000 rpm QUICK TURN 250MSY 5 Axis

X Axis Travel: 9"
Y Axis Travel: 4"
Z Axis Travel: 22.75"
B Axis Travel (Sub Spindle): 23"
C Axis Index: 0.001°
CNC Control: Mazatrol SmoothG
Swing: 26.5"
Turning Diameter: 14.75"
Center Distance: 21.27"
Chuck Size: 10"
Bar Capacity: 3.0"
Spindle Nose: A2-8
Spindle Speed: 4,000 rpm
Main Motor: 35 hp
Tailstock: yes
Y Axis: yes
Live Tooling: yes
Live Tooling Speed: 6,000 rpm
Live Tooling Motor: 10 hp
Sub Spindle: yes
Sub Spindle Chuck: 6"
Sub Spindle Nose: A2-5
Sub Spindle Speed: 6,000 rpm
Sub Spindle Motor: 15/10 hp
Turret Capacity: 12
Machine Dimensions: 102" × 78" × 75"
Machine Weight: 12,000 lbs
Mazak Mazatrol SmoothG CNC Control
Royal QG-80 Acu-Length Quick Change Collet Chuck on Main Spindle
Royal 16C Accu Length Collet Chuck on Sub Spindle
Kitagawa 10" & 6" 3-Jaw Chucks
Automatic Parts Catcher
Parts Conveyor
Work Ejector for Head 2
Mazak Super Flow Hi-Pressure Coolant Unit (1,000 PSI)
Chip Conveyor
Coolant Tank & Pumps
Overload Protection System
LNS Quick Load Servo 80+ Bar Feeder
Live Tooling
Sub Spindle
Y Axis
Auto Tool Length Measurement
2 Right Angle Live Tool Holders
1 Straight Live Tool Holder
