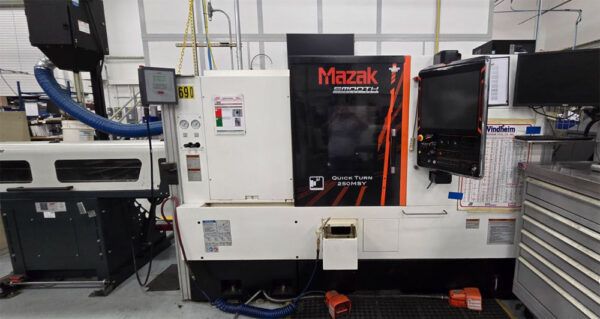

Mazak Mazatrol SmoothG 4000 rpm QUICK TURN 250MSY 3 Axis

X-Axis Travel: 9.0"
Y-Axis Travel: 4.0"
Z-Axis Travel: 22.63" / 31.875"
Control: Mazatrol SmoothG
Maximum Swing: 26.5"
Standard Machining Diameter: 10.87"
Maximum Machining Diameter: 14.75"
Maximum Machining Length: 21.275" / 36.38"
Bar Capacity: 3.00"
Main Spindle Speed: 4000 rpm
Main Spindle Motor: 35 HP
Spindle Bore: 3.58"
Sub Spindle Speed: 6000 rpm
Sub Spindle Motor: 15 HP
Mill Spindle Speed: 6000 rpm
Mill Spindle Motor: 10 HP
Turret Positions: 12
Automatic Part Catcher
Mist Collector
Mist Collector Interface
High-Pressure Coolant: 213 psi
EIA/ISO Conversion
Inch/Metric Conversion
Chip Conveyor
Pneumatic Unit
Tool Eye
MT Connect
Bar Feeder Interface
LNS Quick Load Servo 80 S2 Bar Feeder
Optional Block Skip
Hainbuch Collet/Chuck Workholding System
