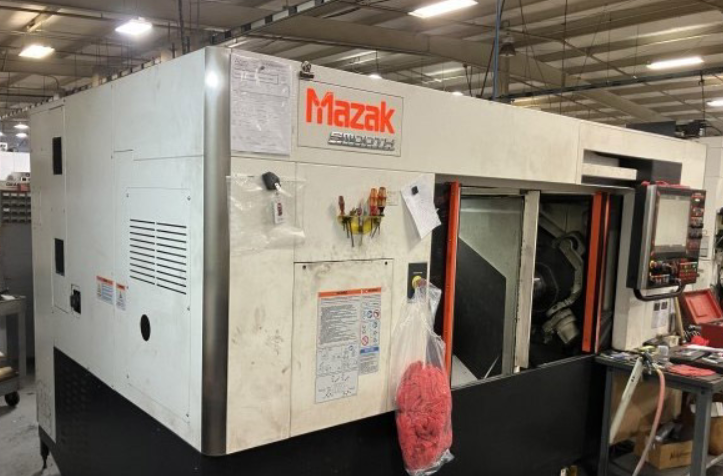

Mazak Mazatrol SmoothG 5000 rpm MULTIPLEX W-200Y 5 Axis

X-Axis Travel: 10.75"
Y-Axis Travel: ±1.96"
Z1-Axis Travel: 19.125"
Z2-Axis Travel: 20.625"
C-Axis: 360°
Control: Mazatrol SmoothG
Maximum Swing: 12.6"
Maximum Machining Diameter: 12.6"
Maximum Machining Length: 7.09"
Distance Between Spindles: 48"
Bar Capacity: 2.5"
2 Spindles
Spindle Speed: 5000 rpm
Spindle Torque: 344 ft-lbs
Spindle Nose: A2-6
Spindle Bore: 3"
Spindle Indexing Increment: 0.0001°
2 Turrets
12 Turret Positions per Turret
VDI Tool Holders
Tool Shank Height: 1"
Boring Bar Diameter: 1.57"
Turret Index Time: 0.23 sec
Rotary Tool Speed: 5000 rpm
Main Spindle Motor: 30/20 HP
Rotary Tool Motor: 7.5 HP
Tool Eye
Chip Conveyor
Automatic Doors
2 Hydraulic Chucks, 8"
