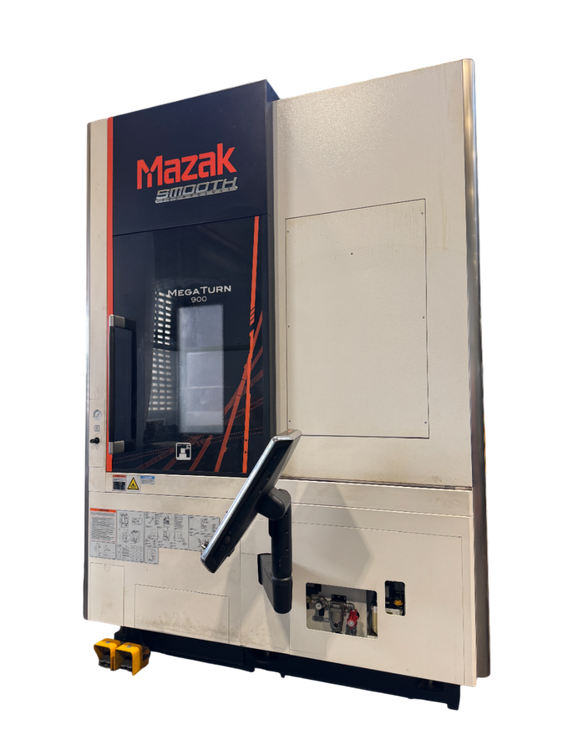

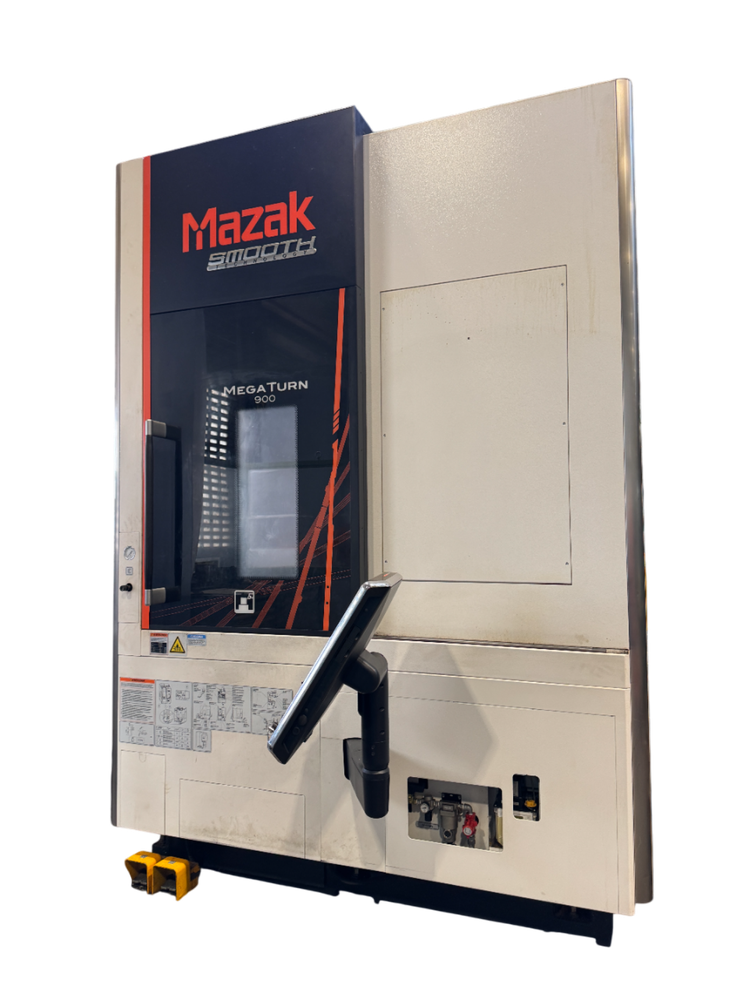

Mazak Mega Turn 900 CNC Vertical Lathe

CNC Vertical lathe MAZAK Mega Turn 900


TECHNICAL CHARACTERISTICS:

CNC control: MAZATROL SmoothG
Max. turning diameter: 920 [mm]
Max. cutting diameter: 1000 [mm]
Stroke X axis: 470 [mm]
Stroke Z axis: 876 [mm]
Rapid traverse rate X axis: 24000 [mm/min]
Rapid traverse rate Y axis: 24000 [mm/min]
Spindle nose: A2-15
Max. spindle speed: 1250 [rpm]
Spindle power: 30 [kW]
Spindle torque: 3655 [Nm]
Min. distance from spindle face to turret face: 154 [mm]
Max. workpiece weight: 3000 [Kg]
Max. distance from spindle face to turret face: 1030 [mm]
Number of tool stations: 12
Turret indexing time: 0.4 [s/pos]
Lubrication tank capacity: 516 [l]
Total power required: 58.9 [kVA]
Supply voltage: 400 [V]
Dimensions: 2375 × 4558 × 3659 [mm]
Weight: 14000 [Kg]

More information available upon request.
