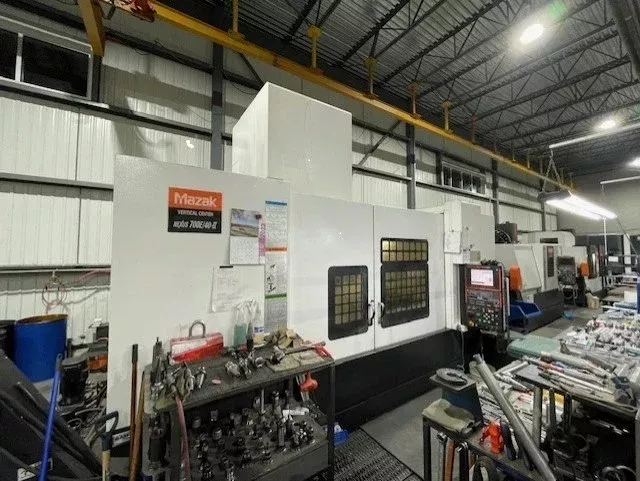

Mazak NEXUS 700E-II/40 3 Axis

MAZAK NEXUS 700E-II/40
2013

Number of tables 1
Table size 80.0" x 27.5"
Max table load 5511 lbs
Spindle nose to table 7.87" - 36.22"
X-axis travel 80"
Y-axis travel 27.6"
Z-axis travel 28.3"
X-axis rapid traverse 1181 IPM
Y-axis rapid traverse 1181 IPM
Z-axis rapid traverse 790 IPM
Cutting feed rate 1181 IPM
Spindle speed 12,000 RPM
Spindle taper CAT 40
Main motor 30 HP
Automatic tool changer 48 tools
Max tool diameter (adjacent) 3.25"
Max tool diameter (empty pocket) 4.92"
Max tool length 17.7"
Max tool weight 24 lbs
Machine weight 28,430 lbs
Mazatrol Matrix CNC control 12.1" color
Dual probing kit OMP60/OTS with EIA Inspection Plus
Automatic pecking load detection
Big Plus spindle
Inch/metric capability
High pressure coolant system 213 PSI
Full machine enclosure
Additional EIA/ISO functions
EIA/ISO code input function
LAN port
USB interface 2 ports
Synchronized tapping
Mazacc-2D software (shape compensation)
Remote handheld pulse generator
