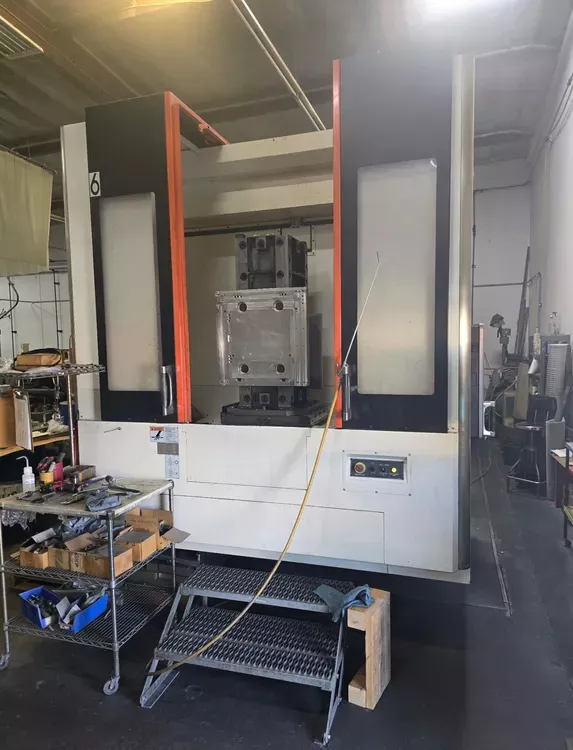

Mazak NEXUS HCN 6800II 4 Axis

MAZAK NEXUS HCN 6800II
2014

Pallet size 24.8 in x 24.8 in
Number of pallets 2
X-axis travel 41.3 in
Y-axis travel 35.5 in
Z-axis travel 34.65 in
B-axis travel .0001°
Rapid traverse X 1575 in/min
Rapid traverse B 1575 in/sec
Spindle speed 8000 rpm
Spindle taper #50
Spindle motor 50 hp
Automatic tool changer 120 tools
Tool length 21.7 in
Tool weight 59.4 lb
Tool change time 2 sec
Machine weight 47800 lb
Control MAZATROL MATRIX 2 CNC color control
2D software shape compensation
Inch/metric switchable
Scaling
All available manuals
Automatic tool length measurement
Tool breakage detection
Coolant through spindle
Temperature-controlled cooled ballscrews
Easy 2PC/ATC recovery via setup button
Prepared for Renishaw OMP60 probe
Thread cutting
Inverse time programming
Polar coordinates
Spindle chiller
Transformer
Additional work light
600 variable sets
EIA helical tapping
EIA pattern cycle
Visual data management
G00 slope constant
External data I/O
Niagara flood coolant system
19.1 in screen
Renishaw OMP60 probe
MT Connect
Superflow through spindle coolant system 1000 PSI
Prepared for visual tool ID
Mayfran chip conveyor
Universal prep for PMC and overhead hydraulics
ATLM with tool breakage detection
Absolute positioning
EIA program management
Spindle multi-point orientation 1°
USB ports x2
Synchronous tapping G84.2-G84.3
Additional 300 workpiece coordinate pairs
