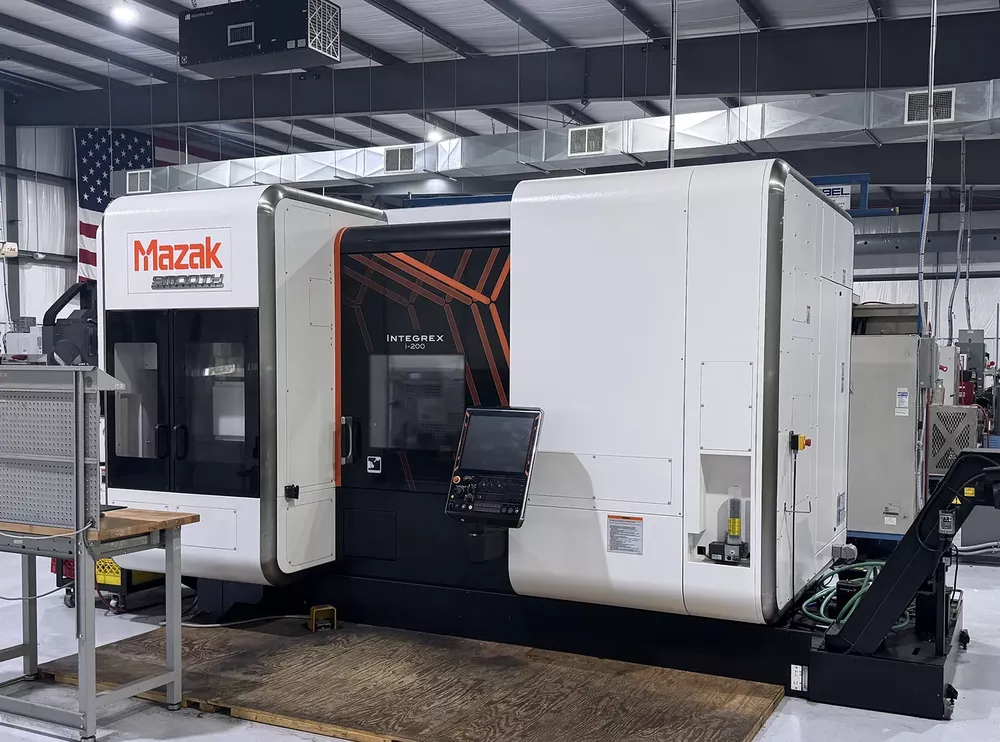

Mazak SmoothX 5-axis machining package 12000 rpm INTEGREX I-200 5 Axis

X axis travel: 24.21"
Y axis travel: 10.24"
Z axis travel: 42.4"
B axis travel: -30° to +210°
C axis spindle

Control: SmoothX 5-axis machining package
Y axis
Tool eye
Tool radius compensation G41.5 / G42.5
Chip and coolant management
Coolant through milling head
High pressure coolant 213 PSI
Flood coolant
Simul-flow coolant
Swing: 25.4"

Maximum machining diameter: 25.4"
Maximum machining length: 39.8"
Bar capacity: 2.56"
Main spindle speed: 5000 rpm
Main spindle nose: A2-8
Spindle bore capacity: 3"
Through spindle hole: 2.05"
C6 spindle

Milling spindle type: Single spindle turret ATC
Milling spindle speed: 12000 rpm
Chuck size: 8"
72 tool capacity
Chip conveyor
