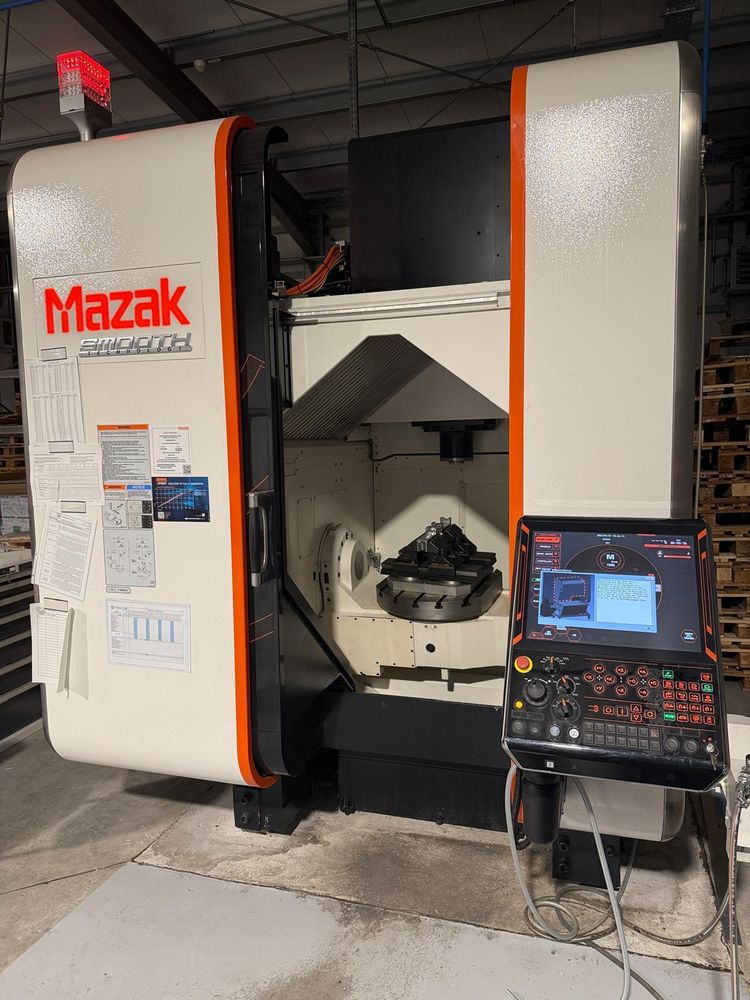

Mazak Variaxis i-600 5 Axis
EUROPE (Western and Northern)
MAZAK Variaxis i-600
Year: 2019
Mazatrol SmoothX control
Travel X/Y/Z: 510 / 910 / 510 mm
A-axis swivel range: +30° to -120°
C-axis rotation range: ±360°
Rapid traverse X/Y/Z: 60 / 60 / 56 m/min
Table size: 600 x 500 mm
Max table load: 500 kg
Indexed table resolution: 0.0001°
Main spindle speed: 12000 min⁻¹
Main spindle power (15 min / continuous): 22 / 15 kW (AC)
Spindle to pallet surface distance: 70 – 580 mm
40-position tool magazine
Tool holder: SK 40
Max tool diameter: 90 mm (130 mm with adjacent free stations)
Max tool length: 300 mm
Max tool weight: 8 kg
EIA / ISO programming
5-axis simultaneous machining
Renishaw RMP600 probe
High-pressure cooling through spindle (Mazak Superflow V30C-J)
Mayfran ConSep 2000 II WS chip conveyor
Electronic handwheel
3-color signal light
