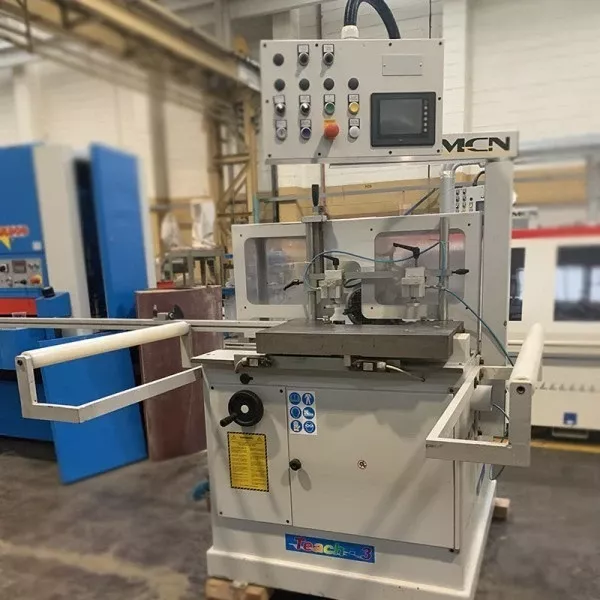

MCN Teach-3

Door Lock Mortise & Drilling Machine
Heavy duty door lock mortising machine with NC control.
Automatically machines mortise lock and faceplate with rotating tool change and, automatic sequenced vertical boring for handle and keyhole.
Hinge recessing with second operation.
Length of table 600mm
Width of table 300mm
Rotating head 180 degrees
Maximum slot length 250mm
Maximum slot depth 120mm
4hp routing motor at 0-6000 rpm
Vertical boring head 3hp
Vertical stroke 120mm.
Complete with extension tables each side and 1 stop bar with flipover stop
Mechanical Vertical Setting
Weight 700kg
