MG MH 2010 B

Sheet width 2050 mm
Plate thickness 10.0 mm ST
Pre-bending 8.0 mm ST
Upper roll diameter approx. 220 mm
Side roll diameter approx. 170 mm
Lower roll diameter approx. 190 mm
Bending speed approx. 2.0 + 5.0 m/min
Control ELAP LYNX
Oil volume 80.0 l
Voltage 380 V
Total power requirement 5.5 kW
Machine weight 5000 kg
Machine dimensions (L × W × H) 3500 × 1550 × 1400 mm

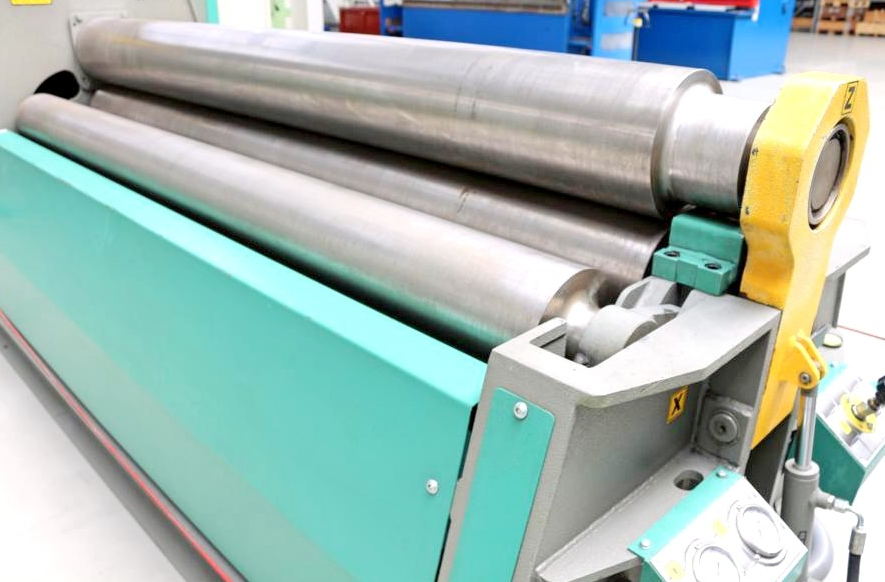

Robust electro-hydraulic 4-roll bending machine
4-roll concept offers a wide range of bending and rounding options
MG NC control unit ELAP LYNX
Operation and control of all rolls and machine axes
Digital position display
Manual operation via joysticks
Freely movable control panel
Two central rolls directly driven by hydraulic motors
Conical rolling possible by tilting the rolls
Parallelism of the side rolls via torsion shafts
Pre-bending on both sides
Diameters of up to 1.1 times the top roll diameter possible
Forged and hardened rolls with hardness 53–55 HRC
Low-maintenance stable machine design
Permanent lubrication of all component bearings
Sturdy welded steel construction
2x selectable bending speeds
Electro-hydraulic folding bearing for easy pipe removal
Pressure gauge for the rollers
Safety lanyard with switch unit
