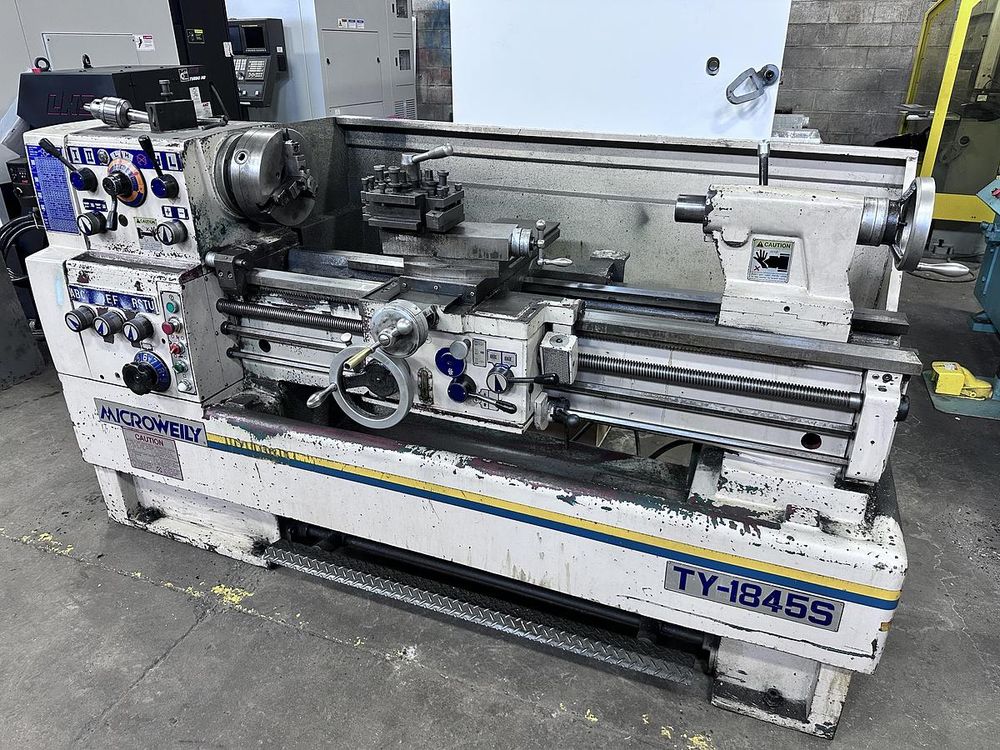

Microweily Engine Lathe 2000 RPM TY-1845S

MICROWEILY TY-1845S

SWING OVER BED 18.11"
DISTANCE BETWEEN CENTERS 45.07"
SWING OVER CROSS SLIDE 11.33"
SWING IN GAP 25.19"
LENGTH OF GAP IN FRONT OF FACEPLATE 7.08"
BED WIDTH 11.81"
SPINDLE BORE 2.28"
SPINDLE NOSE D1-6
SPINDLE TAPER IN NOSE MT6
SPINDLE TAPER IN SLEEVE MT4
SPINDLE SPEED RANGE 30 TO 2000 RPM
CROSS SLIDE TRAVEL 10.43"
COMPOUND REST TRAVEL 5.31"
SPINDLE MOTOR 7-1/2 HP
ELECTRICS 575V/3/60
APPROX. WEIGHT OF MACHINE 3,900 LBS.

Equipped With
10" 3-JAW CHUCK
FOOTBRAKE
4-WAY TOOLPOST
COOLANT
INCH/METRIC THREADING
