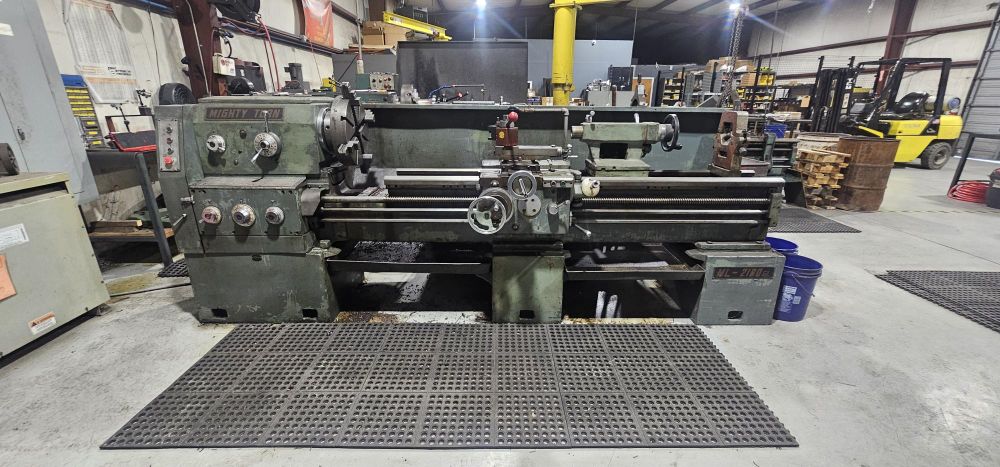

Mighty Engine Lathe 1600 RPM TURN ML2180GL

Swing over bed 21 in
Swing in removable gap 27-61/64 in
Swing over cross slide 11-13/16 in
Distance between centers 80 in
Cross slide travel 13-3/8 in
Top slide travel 5-3/4 in
Tailstock spindle travel 6 in
Spindle speeds 10–1600 RPM
Number of spindle speeds 24
Spindle nose D1-8 camlock
Spindle bore 3-1/4 in
Spindle inside taper MT6
Spindle diameter 2-61/64 in
Tailstock spindle taper MT5
Thread range inch 1/8–72 TPI
Thread range metric 0.25–224 mm
Feed range longitudinal 0.001–0.24 IPR
Feed range cross 0.00022–0.05512
Lead screw diameter 2 in
4-jaw independent chuck
Quick-change toolpost with 1 holder
Rapid traverse carriage
Rapid traverse cross slide
Steady rest
Full-length rear splash guard
Pull-out chip pans 2
Coolant system
Main motor power 15 HP
Floor space 156 x 46 x 65 in
Machine weight approx. 6,000 lb
