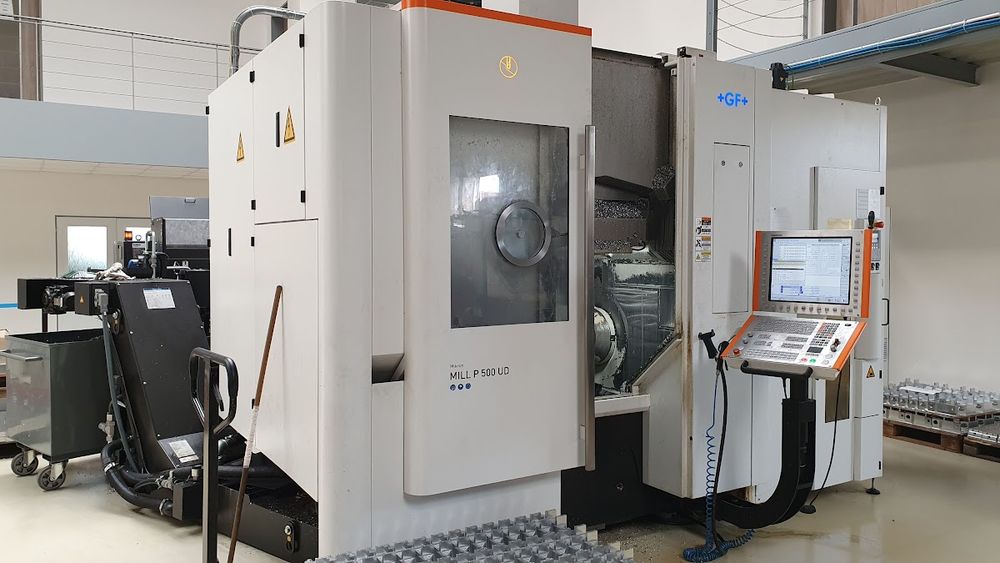

Mikron MILL P 500 U
Ref :
2735171-3-MT
Condition :
Used
Manufacturer :
Mikron
Model :
MILL P 500 U
Nb Of Axis :
-
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Year: 2018

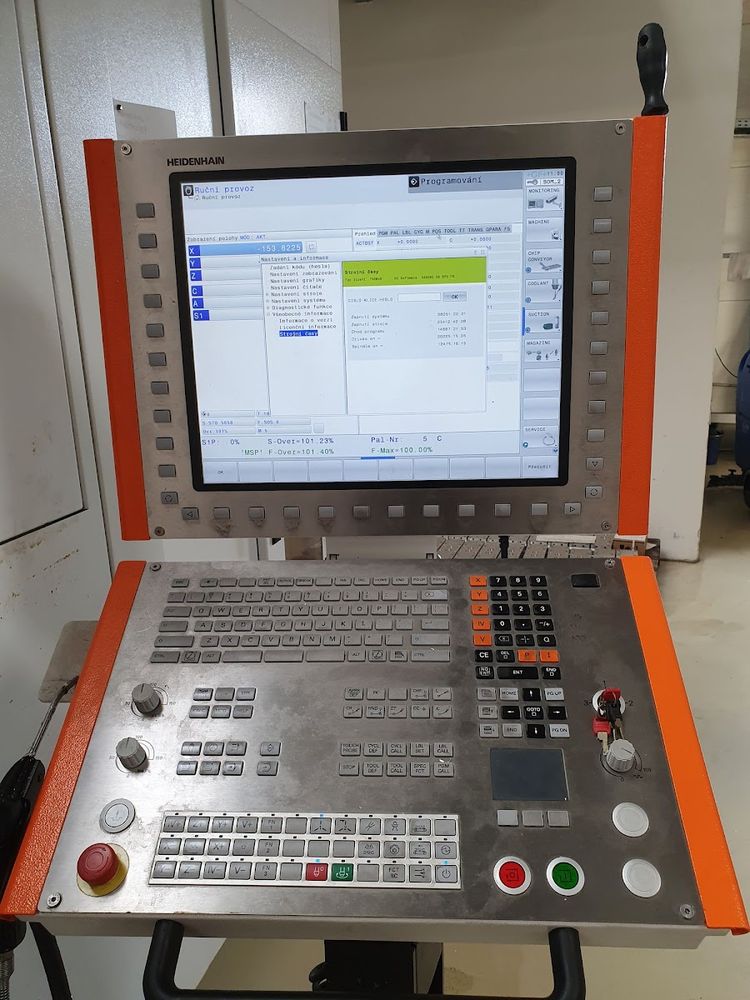

Control system Heidenhain TNC 640
Clamping area of table 350x350 mm
Travel X-axis 500 mm
Travel Y-axis 600 mm
Travel Z-axis 450 mm
Spindle speed 10 - 20000 /min.
Number of driven axes 5
Cooling through spindle YES
Pressure of cooling 80 bar
Spindle taper HSK-A63 .
Max. load of table 200 kg
Axis A +91/-121 °
Axis C 360 °
Number of pallets 7

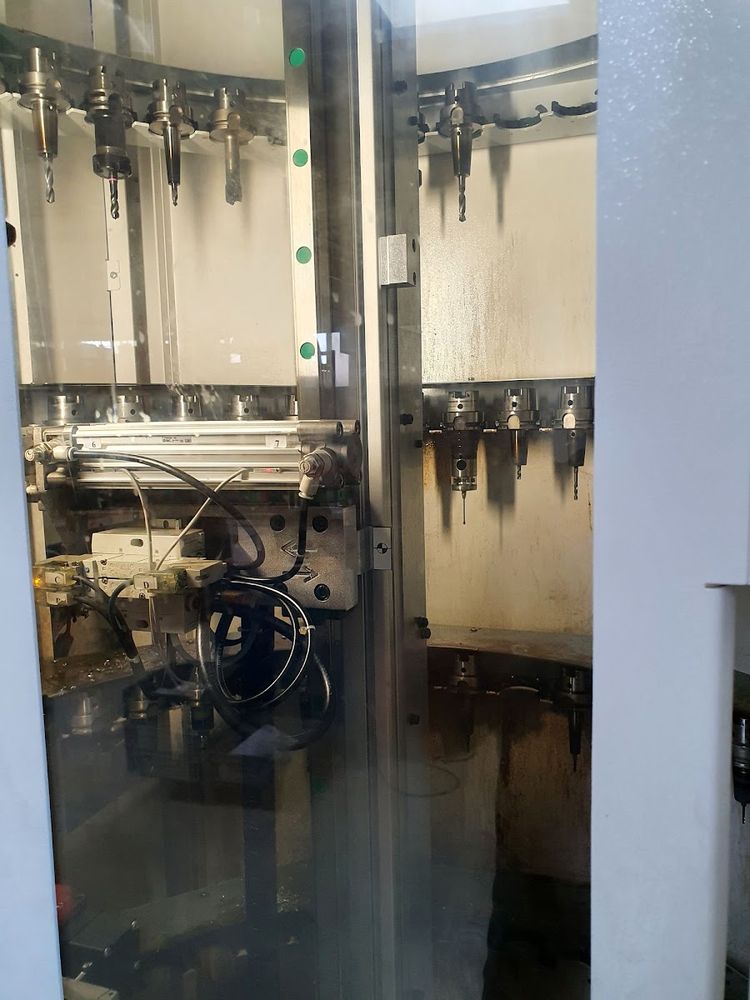

Tool magazine YES
Number of positions in magazine 120
Machine weight 13000 kg
Machine dimensions l x w x h 4280x3920x3340 mm
The machine is in excellent condition. Possible to test under power.
