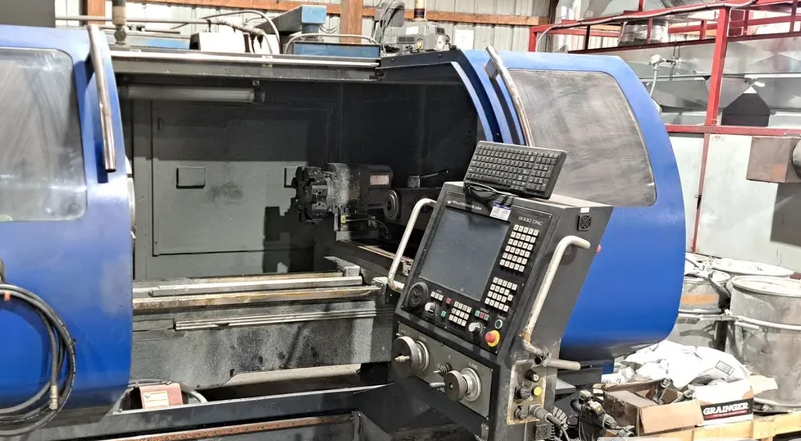

Milltronics Milltronics 9000 (conversational + G/M code) 2000 RPM ML26/40 2 Axis

X axis travel 13" (330 mm)
Z axis travel 63.5" (1600 mm)
CNC control Milltronics 9000 (conversational + G/M code)
Coolant pump kit
Tailstock
Remote jog handle
Bar capacity 3"
Swing 27"
Swing over bed 23" (580 mm)
Swing over gap 30.3" (770 mm)
Swing over cross slide 12.1" (310 mm)
Machining length 40"
Spindle speed range 40–2000 RPM
Spindle motor 24/15 HP (18/11 kW)
Spindle nose A1-8
Spindle bore 3.22" (82 mm)
Spindle torque 1050 ft-lbs (1423 Nm)
X, Z rapid traverse rate 500 IPM (12.7 m/min)
Maximum cutting feed rate 100 IPM (2540 mm/min)
8 station automatic turret
Tool size 1" (25 mm)
Boring bar capacity 1.5" (38 mm)
Bi-directional tool selection
Dimensions 150 x 74 x 76 in
Machine weight 9370 lbs
Machine height 83" (2108 mm)
Floor space 143" x 83" (3630 x 2108 mm)
Power requirement 24 KVA / 60 amps
Voltage 208–240 V / 3 phase
Positioning accuracy ±0.00025" (±0.0063 mm)
Repeatability 0.0002" (0.005 mm)
Axis thrust force 2300 lbs (1040 kg)
Ball screw diameter X 1.25" (32 mm)
Ball screw diameter Z 1.77" (45 mm)
Tailstock quill travel 6" (150 mm)
Tailstock quill diameter 3.94" (100 mm)
Tailstock taper MT5
Low hours 3759
