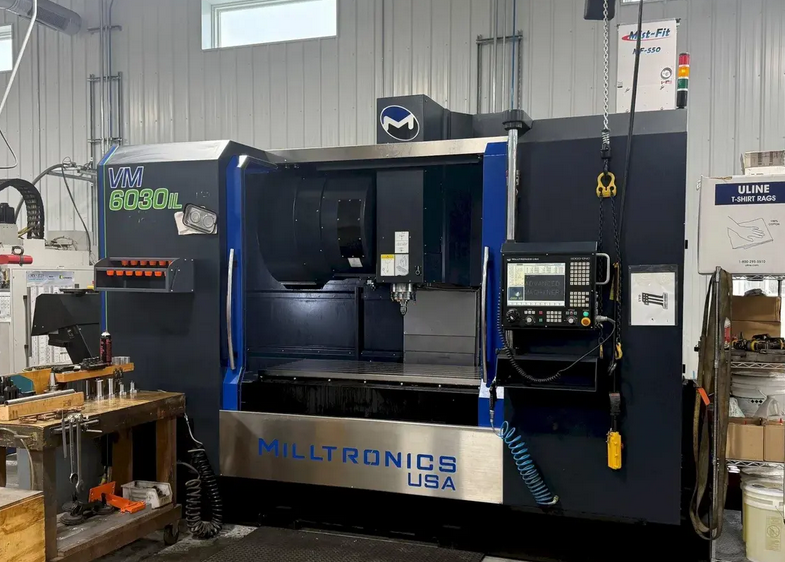

Milltronics VM6030IL 3 Axis

X-Axis Travel: 60"
Y-Axis Travel: 30"
Z-Axis Travel: 24"
Rapid Traverse: X/Y 1000 IPM
Rapid Traverse: Z 787 IPM
Maximum Cutting Feed Rate: 500 IPM
3 Axis
Control: Milltronics 9000 Series CNC v10.2.9742
15" Color LCD Touchscreen
Linear Roller Guideways
Spindle Load Meter
Spindle Air Purge
Automatic Lubrication
Chip Conveyor
Chip Washdown
Full Enclosure with Side Doors
Flood Coolant
Dual Enclosure Work Lights
Rigid Tapping
Spare M Function
Solid Model Graphic Display
120 GB Solid State Drive
DXF File Import
Rest Machining Cycle
Spindle Chiller
Mist Fit MF-550 Mist Collector
New Z-Axis Ball Screw
New Z-Axis Thrust Bearings
Total On Time Hours: 24,205
Spindle Speed: 15,000 RPM
Spindle Power: 35/25 HP
Spindle Taper: ISO 40
30-Tool Double Arm ATC
Tool Shank: CT40
Maximum Tool Diameter: 3.1"
Maximum Tool Diameter (Adjacent Pot Empty): 5.1"
Maximum Tool Length: 11.8"
Maximum Tool Weight: 15 lbs
Table Size: 66" x 30"
Table Load Capacity: 3,000 lbs
T-Slots: 7 x 0.71" on 3.94" centers
Spindle Nose to Table Distance: 4"–28"
Way Cover to Spindle Center: 32.4"
Machine Height: 123"
Machine Dimensions: 150" x 115"
Additional Conveyor Discharge Width: 38"
Machine Weight: 21,800 lbs
Power Requirement: 48 kVA / 125 A
Voltage: 208–240V / 3 Phase
