Minster 4 Press 32 ton

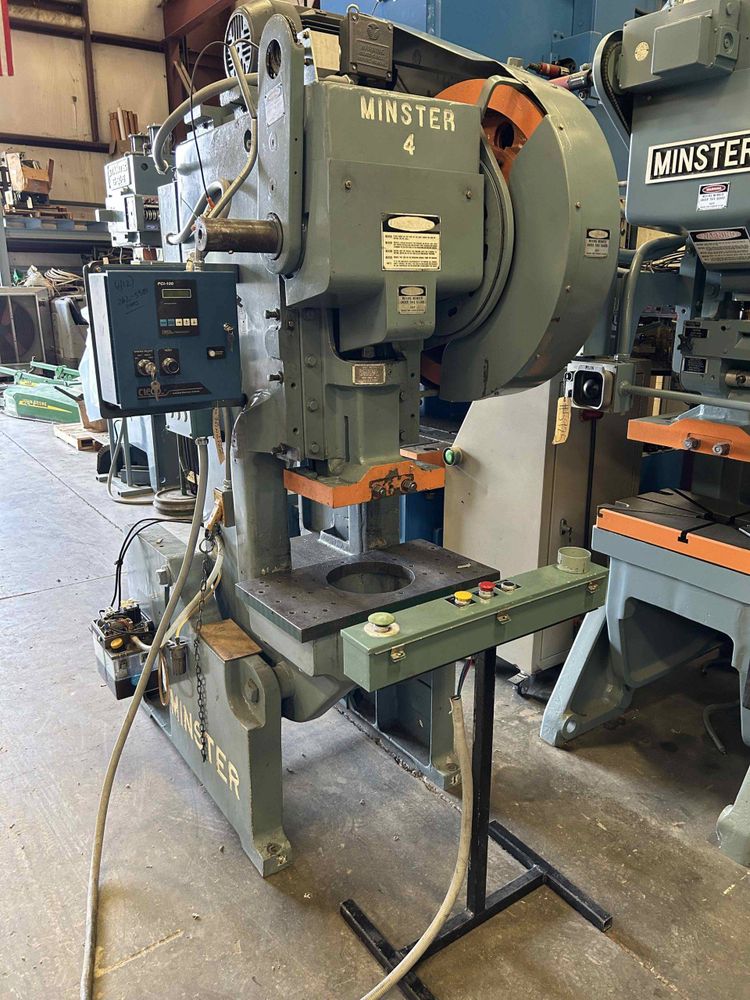

Minster #4 Press
1971

Capacity: 32 ton
Stroke: 3″
Max shut height to bed: 9.5″
Bed area: 24″ x 15″ (right to left x front to back)
Speed: 130 spm (65-130 spm possible for upcharge)
Slide adjustment: 2.25″ manual
Slide area: 15″ x 10.5″ (right to left x front to back)
Bolster plate: 1.5″ high x 27″ x 15″ with 10.25″ diameter center hole
Distance between uprights: 11″
Floor to bed height: 32″
Clutch: Minster air clutch and brake combination
Motor: 5 hp, 1150 rpm, 208-240/480v
Control: Cieco 1100r
Approximate dimensions: 48″ x 60″ (right to left x front to back) x 96″ high
Approximate weight: 4,500 lbs
Slide shank size: 1.625″ OD
Automatic lubrication pump
Floor standing
Cast iron frame
