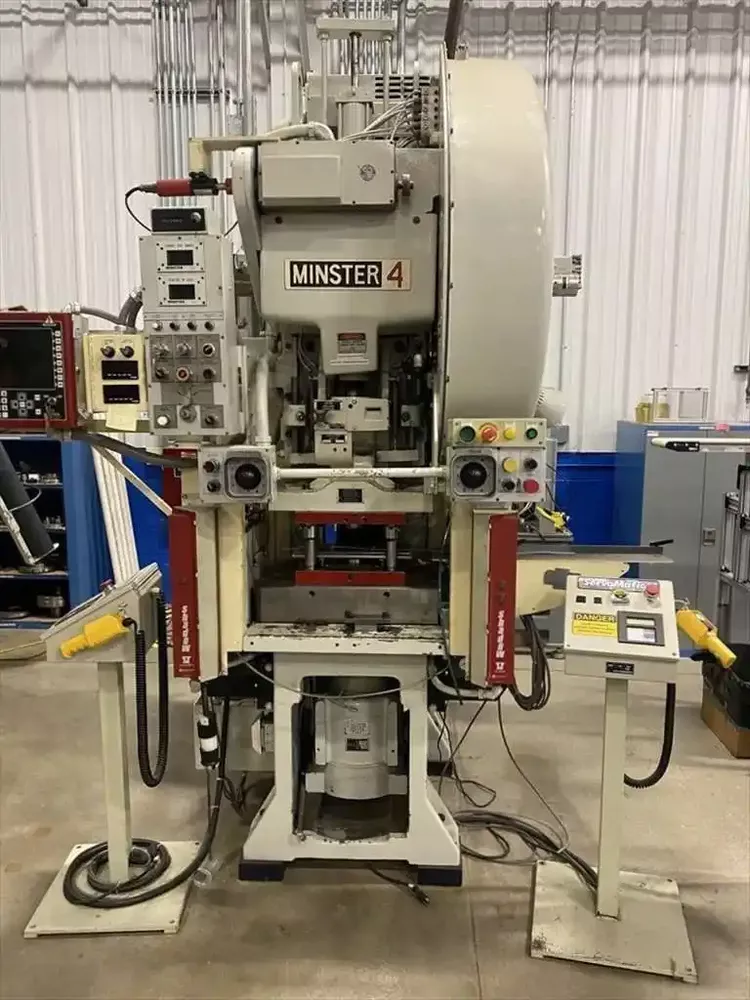

Minster 4SS Fixed Base Single Point Gap Frame Press 32 Ton

Tonnage Capacity: 32 Ton
Mild Steel Capacity (Width x Thickness): 6" x 0.125"
Shut Height on Bed (SDAU): 12"
Stroke Length: 3"
Max. Stroke Speed: 180 SPM
Throat: 9.5"
Slide Adjustment: 2.25"
Bolster Area (L-R x F-B): 16" x 24"
Bolster Thickness: 5"
Bed Opening: 12" x 16"
Back Opening Width: 13.5"
Flanged Side Area: 12" x 20"
Air Cushion Diameter: 12"
Max. Air Cushion Draw: 3.5"
Main Motor: 3 HP
Electrical: 480V/3Ph/60Hz
Wintress Smart Pac 2 Control
Wintress Autoset 1500 Load Analyzer
Air Clutch & Brake
Air Counterbalance
Air Cushion Model 12T
