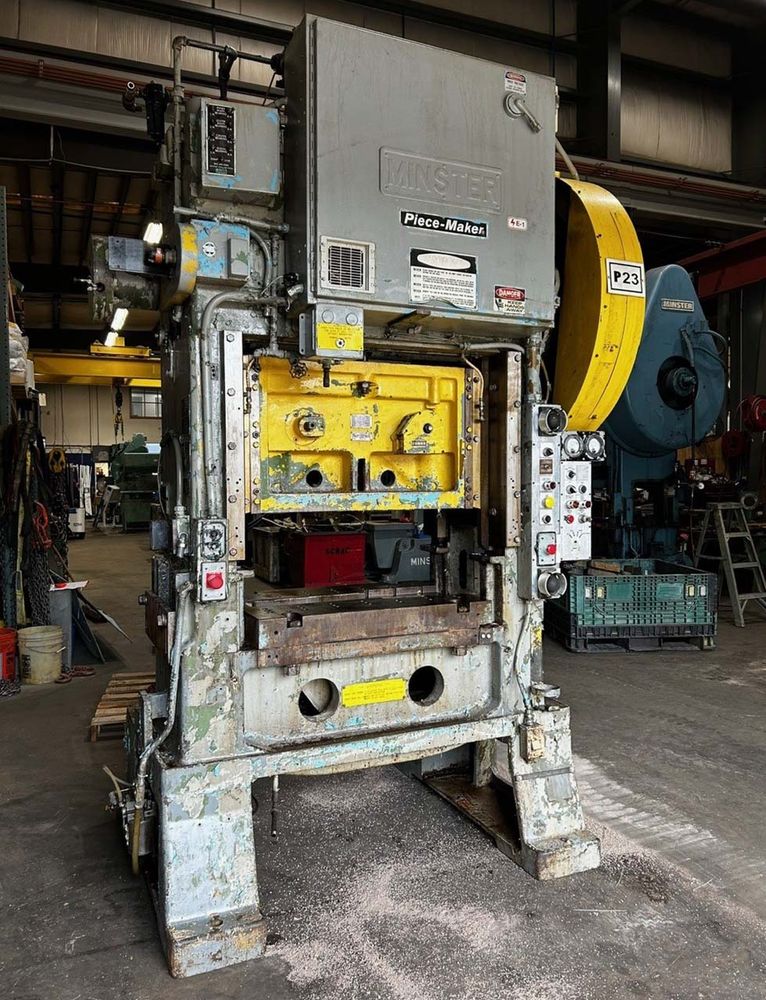

Minster P2-60-36 60 Ton Tonnage

2.5″ Stroke
0-400 SPM Speed (Variable)
3.0″ Slide Adjustment
15.5″ Shut Height (S.D.A.U.)
36″ R-L x 25″ F-B Bed Area
36″ R-L x 15″ F-B Slide Area
12″ Side Window Width
15 HP Motor
230/460V/60HZ/3PH Electric
Approx. 15,000 lbs Weight

Air Clutch and Brake
Dual Air Counterbalances
Automatic Recirculating Lubrication System
Shut Height Indicator
Eight Point Gibbing
Tie Rod Construction
Eddy Current Motor
4″ Bolster (Center Cutout: 30″ L-R x 6″ F-B)
(4) Isolation Mounts
