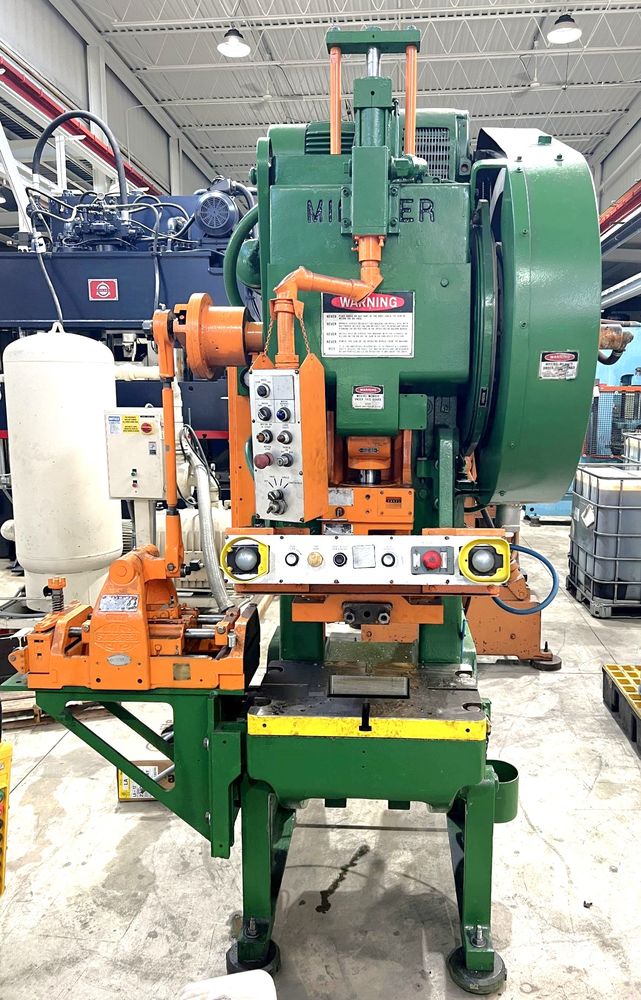

Minster 5 45 tons

Gap Frame Punch Press
Minster 5
Year: 1970

Specifications:
Capacity: 45 tons
Stroke: 4"
Max Shut Height to Bed: 12.5"
Ram Adjustment: 2.75"
Bed Area (RL x FB): 28" x 18"
Ram Area (RL x FB): 18" x 12"
Bolster Plate: 28" x 18" x 2.5" thick, with 10.5" x 7" center hole

Speed: 180 strokes per minute
Throat Depth: 10"
Distance Between Uprights: 14"
Floor to Bed Height: 32"

Air Clutch: Recently updated Minster air clutch and brake
Press Controls: Minster Cycle-Mite SCR Eddy Current Clutch Control (Model: SCRB-52)
Overall Dimensions (RL x FB x H): 85" x 83" x 119"
Approximate Weight: 8,000 lbs
