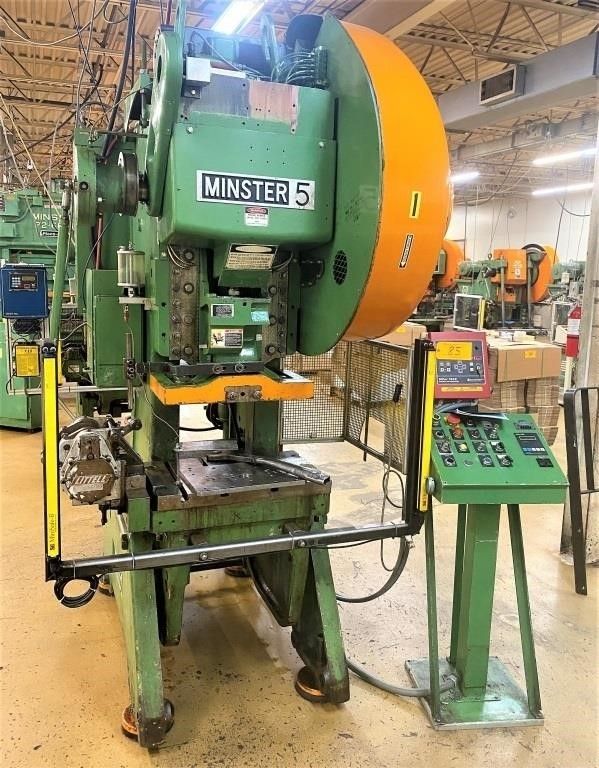

Minster 5 Press 45 tons

Minster 5 Press
1977

Capacity: 45 tons
Stroke: 3″
Max shut height to bed: 12.75″
Ram adjustment: 2.5″
Bed area: 28″ x 18″ (RL x FB)
Bolster plate: 27.75″ x 18″ (RL x FB) x 2.25″ thick with 17.5″ x 4.25″ hole in center

Speed: 0–180 SPM variable speed
Throat depth: 9.75″
Distance between uprights: 13.5″
Floor to bed height: 35.5″

Clutch: Minster air clutch and brake – 55 lbs rated air pressure
Press controls: Cycle-Mite SCR eddy current controls with Cieco PCI-100 programmable limit switch
Approx. dimensions: 72″ x 82″ (RL x FB) x 115″ high
Approx. weight: 8,000 lbs

Equipped with:
Littell rollfeed
