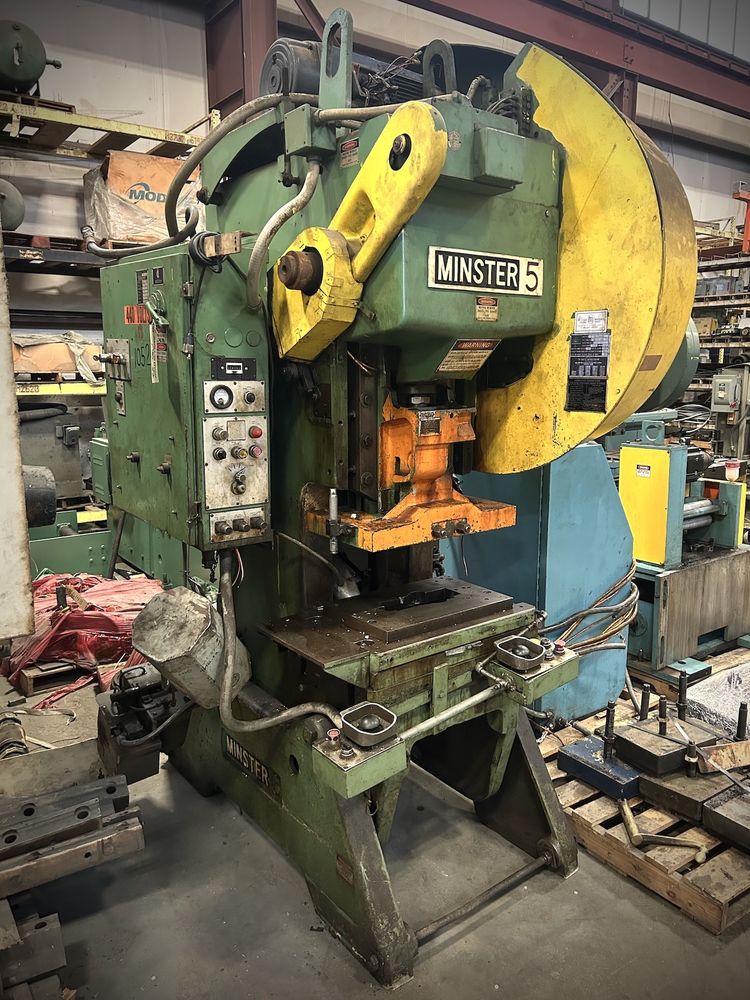

Minster 5-SS 45 tons

Gap Frame Punch Press
Voltage: 240/480V / 3-Phase
Minster 5-SS
Year: 1979

Capacity: 45 tons
Stroke: 3"
Max Shut Height to Bed: 12.75" SDAU
Bed Area (RL x FB): 28" x 18"
Speed: 90 – 180 SPM
Slide Adjustment: 2.5" (Manual)
Slide Area (RL x FB): 24" x 14"
Bolster Plate (H x RL x FB): 2.25" x 28" x 18" (T-slot)
Distance Between Uprights: 13.5"
Distance Floor to Bed: 33"
Clutch: Minster air clutch/brake combination
Press Controls: Minster press control
Electric Motor: 7.5 HP, 1750 RPM, 240/480V, 3-60, Eddy Current Drive
Overall Dimensions (RL x FB x H): 60" x 72" x 114"
Approximate Weight: 10,000 lbs

Additional Features:
Minster lubrication pump & reservoir
Floor standing
Direct drive
Cast iron frame
