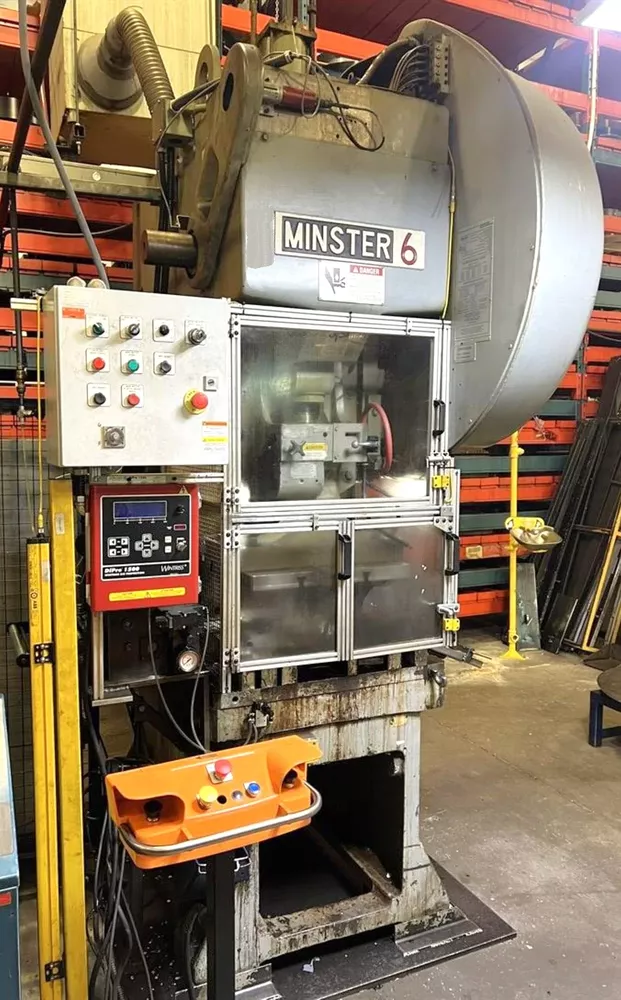

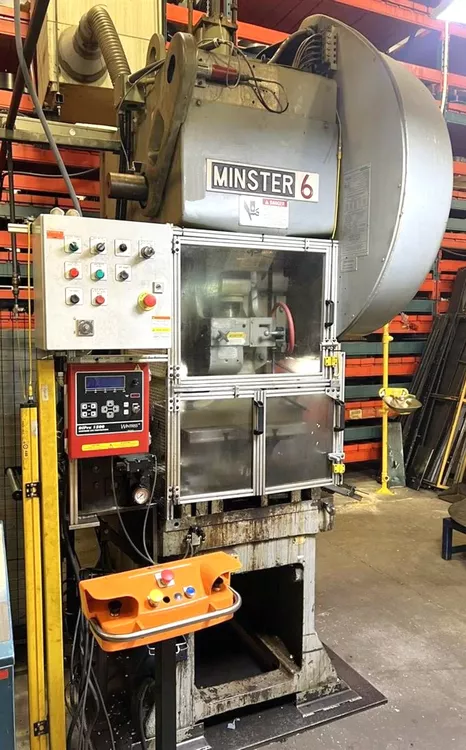

Minster 6SS Press 60 TONS

Minster 6SS Press
Year: 1998

CAPACITY 60 TONS
STROKE 4″
MAX. SHUT HEIGHT TO BED 16″
RAM ADJUSTMENT 2.75″
BED AREA 32″ X 21″ (RL X FB)
RAM AREA 24″ X 14.25″ (RL X FB) WITH 22″ X 18″ (RL X Fb) X 1.75″ PLATE
BOLSTER PLATE 32″ X 21″ (RL X FB)
SPEED 110-220
THROAT DEPTH 12″
DISTANCE BETWEEN UPRIGHTS 15″
FLOOR TO BED HEIGHT 33.25″

CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION – 55 LBS. AIR PRESSURE
PRESS CONTROLS WINTRISS WPC 2000 CLUTCH / BRAKE CONTROLLER
ELECTRIC MOTOR APPROX. 10 HP MOTOR | 4 / 2 AMPS
APPROX. DIMENSIONS APPROX. 75″ X 80″ (RL X FB) X 132″ HIGH
APPROX. WEIGHT 12,000 LBS.
