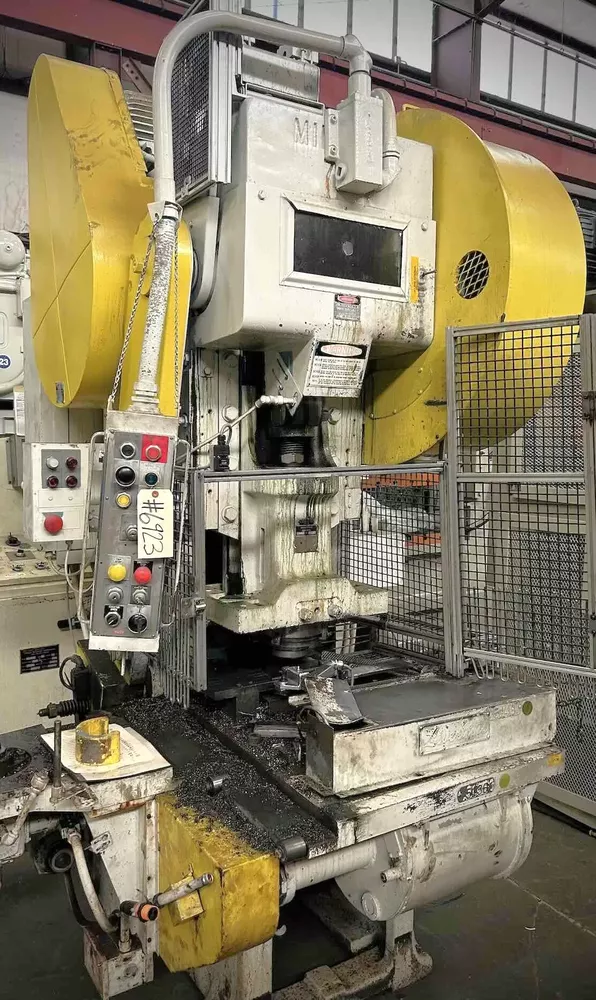

Minster 70-4 Press 60 TONS

Minster 70-4 Press
Year: 1977

CAPACITY 60 TONS
STROKE 6″
MAX SHUT HEIGHT TO BED 14.25″ SDAU
BED AREA 32″ X 21″ (rl x FB)
SPEED 65 SPM
SLIDE ADJUSTMENT 3″ MANUAL
SLIDE AREA 21″ RL X 14″ FB
BOLSTER PLATE APPROX 2.5″ H X 32″ RL X 21″ FB
DISTANCE BETWEEN UPRIGHTS 15″
DISTANCE FLOOR TO BED APPROX 33″
CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION
ELECTRICS APPROX 7.5 HP 1750 RPM 480V-3-60 MOTOR & MINSTER RELAY PRESS CONTROL
APPROX DIMENSIONS 115″ H X 60″ RL X 72″ FB
APPROX WEIGHT 14,000 lbs

Equipped With
AIR COUNTERBALANCES, FLOOR STANDING, CAST IRON FRAME
