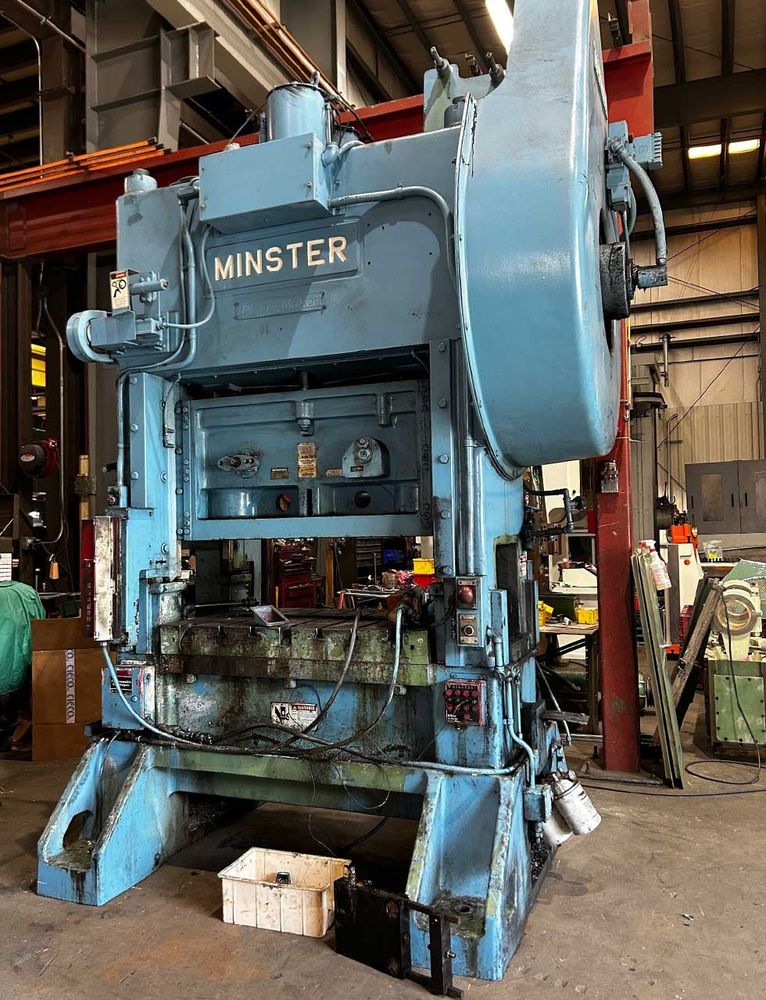

Minster P2‑100‑48 100 Ton

Minster P2‑100‑48

Tonnage: 100
Stroke: 4″
Speed (Variable): 80–160 SPM
Slide Adjustment: 4″
Shut Height (S.D.A.U.): 18″
Bed Area: 48″ × 31″
Slide Area: 48″ × 18.5″
Slide Window Width: 16″
Motor: 20 HP
Electric: 230/460 V, 60 Hz, 3 Phase
Weight (Approx.): 33,000 lbs

Air Clutch and Brake
Wintress WPC with Smart Pac Controls
Recirculating Lubrication System
Dual Air Counterbalances
Floor Mounted Operator Console
5″ T‑Slotted Bolster (Center Cutout: 41″ L‑R × 4.75″ F‑B)
Eight‑Point Gibbing
Tie Rod Construction
Four Isolation Mounts
