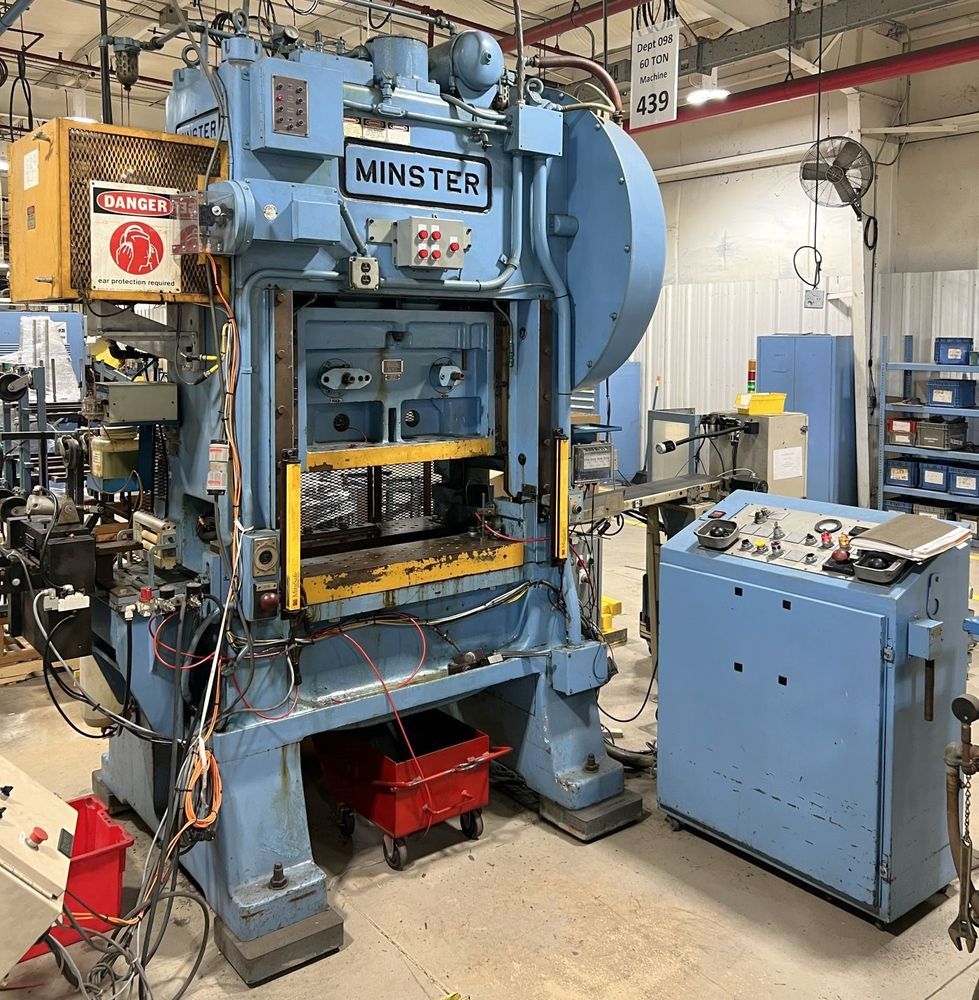

Minster P2-60-36 Press 60 TONS

Minster P2-60-36 Press
Year: 1976


CAPACITY 60 TONS
STROKE 3″
MAX. SHUT HEIGHT TO BED 13.5″ SDAU
BED AREA 36″ X 26″ (RL X FB)
RAM / SLIDE AREA 36″ X 15″ (RL X FB) WITH 8 POINT GIBBING
SPEED 80-240 SPM EDDY CURRENT VARI-SPEED
RAM ADJUSTMENT 3″ MANUAL ADJUST
BOLSTER SIZE 36″ X 26″ (RL X FB) X 3.5″ HIGH WITH 36″ X 6″ HOLE THROUGH CENTER
WINDOW SIZE 12″ WIDE
FLOOR TO BED HEIGHT 35″
DISTANCE BETWEEN UPRIGHTS 41″
DISTANCE BETWEEN GIBBS 38″
AIR CLUTCH MINSTER AIR CLUTCH & BRAKE
PRESS CONTROLS MINSTER CONTROLS
ELECTRIC MOTOR 10 HP 230/460V-3-60 EATON ADJUSTO SPEED MOTOR
APPROX. DIMENSIONS 102″ X 48″ (RL X FB) X 114″ HIGH
APPROX. WEIGHT 18,000 LBS.
Equipped With TIE ROD CAST IRON CONSTRUCTION, RECIRCULATING OIL LUBRICATION, FLYWHEEL DRIVE, AIR COUNTERBALANCES FOR SMOOTHER OPERATION AND ACCURACY
