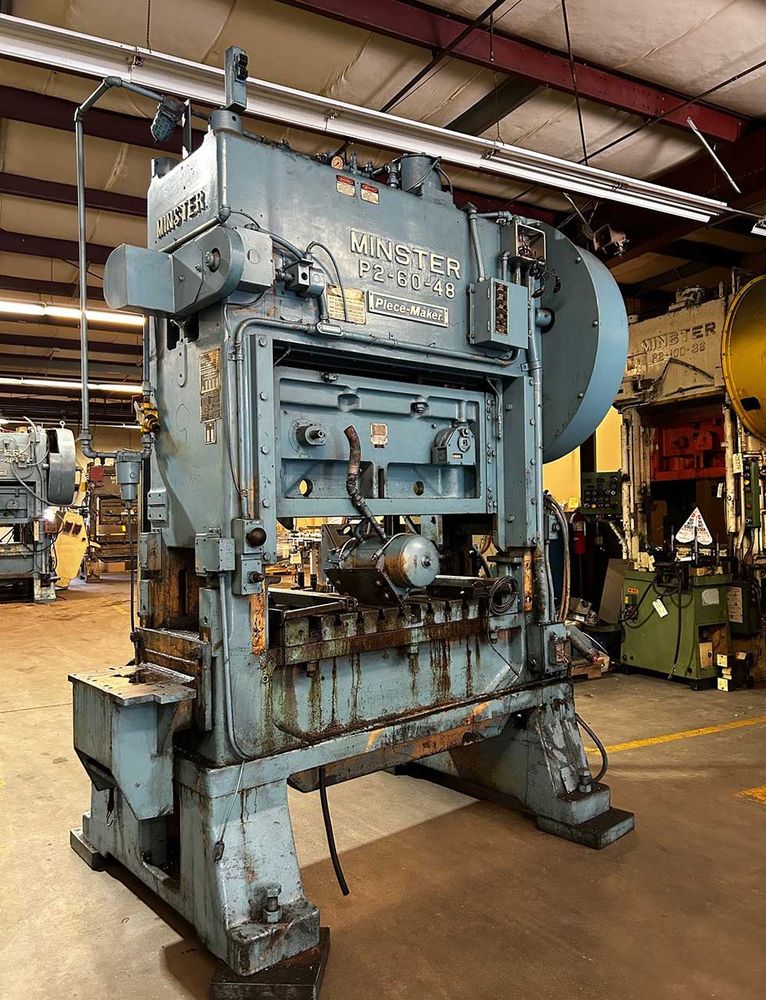

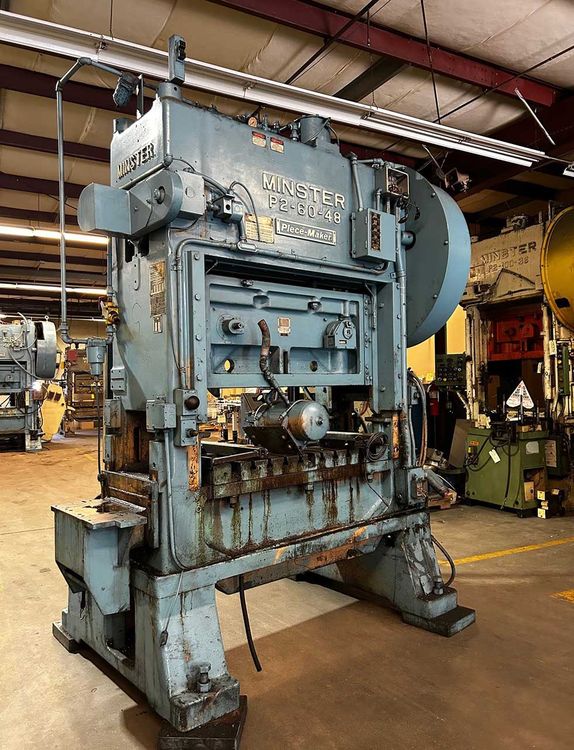

Minster P2‑60‑48 60 Ton

Minster SSDC Press

Tonnage: 60
Stroke: 4.00″
Speed (Variable): 0‑200 SPM
Slide Adjustment: 3.00″
Shut Height (S.D.A.U.): 14.5″
Bed Area: 48″ × 25″
Slide Area: 48″ × 15″
Motor: 10 HP
Electric: 230/460 V, 60 Hz, 3 Phase
Weight (Approx.): 18,400 lbs

Air Clutch and Brake
Dual Air Counterbalances
Automatic Recirculating Lubrication System
3.5″ T‑Slotted Bolster (Center Cutout: 39″ L‑R × 5.25″ F‑B)
Shut Height Indicator
Eight‑Point Gibbing
Tie Rod Construction
Four Isolation Mounts
