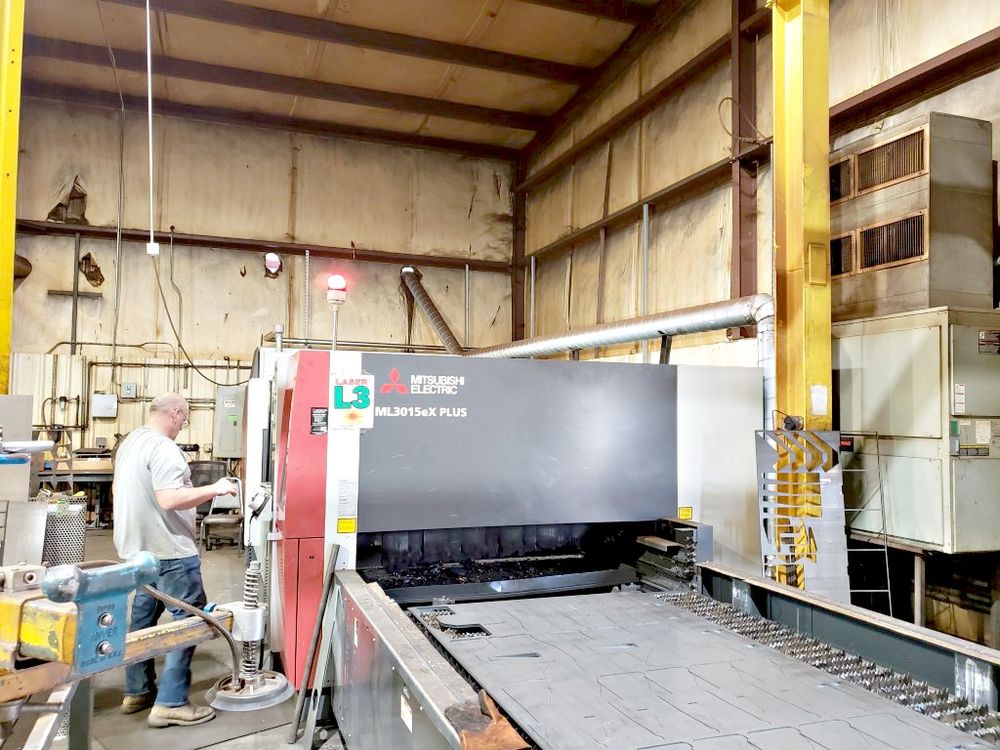

Mitsubishi ML3015eX PLUS

CNC Laser Machine
SPECIFICATIONS:
Table Width: 5'
Table Length: 10'
Max Wattage: 6,000
Control: Mitsubishi PC Based CNC
Hours: Approx 10,500 Discharge Hours
Power Requirement: 208/3/60
Resonator Type: Cross-Flow Mitsubishi
Resonator: 60XF-R 6000 W
Maximum Sheet Weight: 2,050 lbs
Range of Operation In The X/122Y/Z Axes: 3100/1565/150 mm
Start Up Time: 3 Min
Simultaneous Speed X Axis, Y Axis: 140m/min
Max Work Speed: 50m/Min
Positioning Accuracy: 0.05/500mm (X Axis/Y Axis)
Positioning Repeatability: 0,01mm (X Axis, Y Axis)
Auto Focus: 5", 7.5" and 10" Lenses
Outside Dimensions: 10180 x 3130 x 2260 mm
Approx Weight: 30,000 Lbs

EQUIPPED WITH:
Mitsubishi Head PH-XS
Chiller Unit
Dual Pallet Shuttle Tables
Dust Collector
