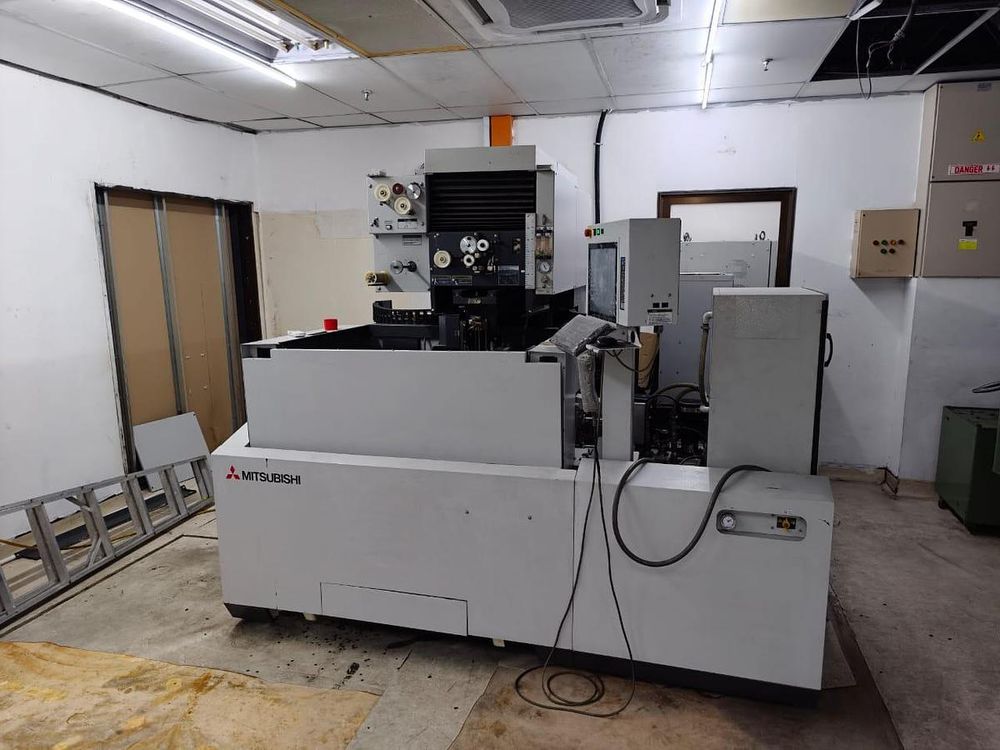

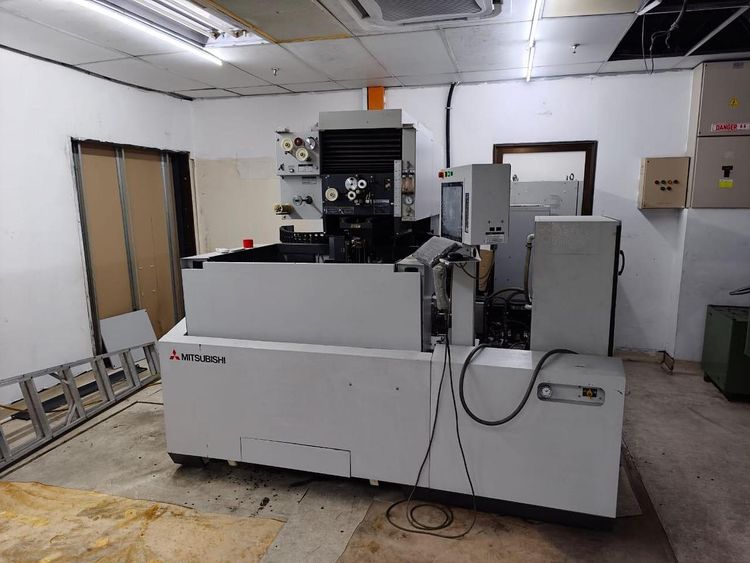

Mitsubishi MV2400S

X-axis travel 600 mm
Y-axis travel 400 mm
Z-axis travel 310 mm
U-axis travel ±75 mm
V-axis travel ±75 mm

table size 840 × 640 mm
table type U-shaped hardened table
optional table type 4-sided hardened table (column up specification)

max workpiece weight 1500 kg
max workpiece dimensions 1050 × 820 × 305 mm

wire diameter Ø0.10 – 0.30 mm

working tank type automatic vertical front door
filtering system 2 filters
dielectric fluid reservoir capacity 860 L (980 L column up specification)
water purifier capacity 10 L

machine weight 3500 kg (3650 kg column up specification)

machine dimensions 2687 × 3030 × 2150 mm
column up machine dimensions 2837 × 3030 × 2380 mm
