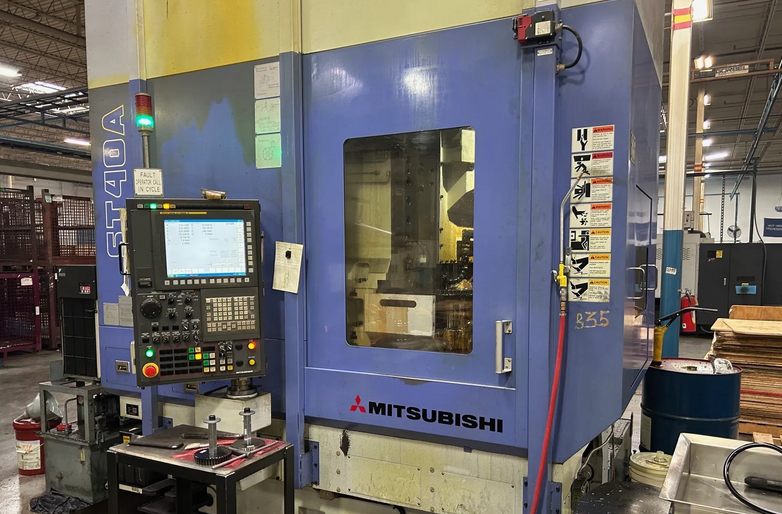

Mitsubishi ST40 Variable Speed Gear Shaper

MITSUBISHI ST40
2013

Fanuc 31i-B CNC Control
Programmable guide
Crowning
Taper
Cutter adaptor
Coolant system
Chip conveyor
Transformer
Stacklight

Maximum workpiece diameter 400 mm (15.75")
Maximum internal gear diameter 250 mm (9.84") plus cutter diameter
Maximum module 8, module 3.2 D.P.
Maximum workpiece width 115 mm (4.53")
Maximum cutter stroke length 135 mm (5.3")

Cutter maximum helix angle ±36°
Cutter stroke speed infinitely variable 60-500 strokes/min
Rotary feed 0.098-126.0 mm/min (2.5-3,200 IPM)
Radial feed 0.00004-0.004 mm/stroke
Rapid feed 5,000 mm/min (196.9 IPM)
Cutter spindle diameter 110 mm (4.33")
Work table diameter 520 mm (20.5")
Main motor power 12 kW (16.2 HP)

Power consumption 40 kVA
Machine dimensions approx. 135"L x 102"W x 112"H
Machine weight approx. 8,000 kg (17,600 lbs)
