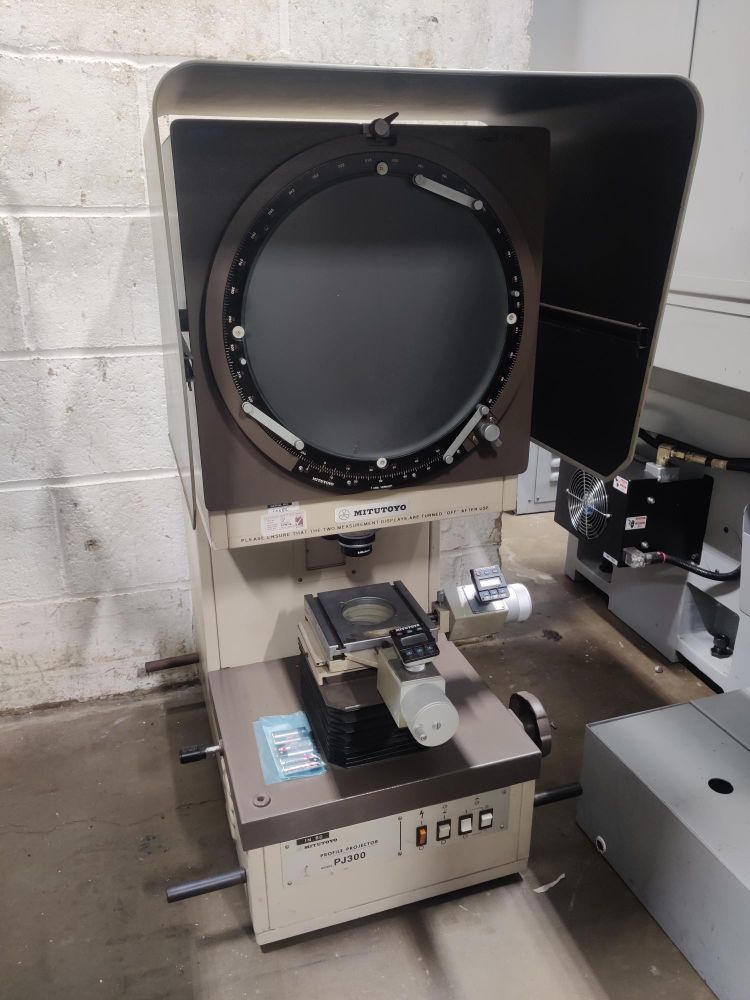

Mitutoyo PJ300 Projector

Mitutoyo PJ300 Projector

Effective measuring diameter of protractor screen: 306 mm
Resolution of screen: 1 or 0.01 degree (selective)
Measuring range of screen: ±360 degrees
Contour image projection
Work table size: 150 x 150 mm
Longitudinal and crosslide measurement range: 60 mm
Precision: 0.001 and 0.002
Whole view field diameter: 30 mm
360 degree projector screen with fine adjustment
Maximum workpiece height: 76 mm
Maximum focusable step: 66 mm
Maximum focusable diameter: 150 mm
Includes 10X lens
