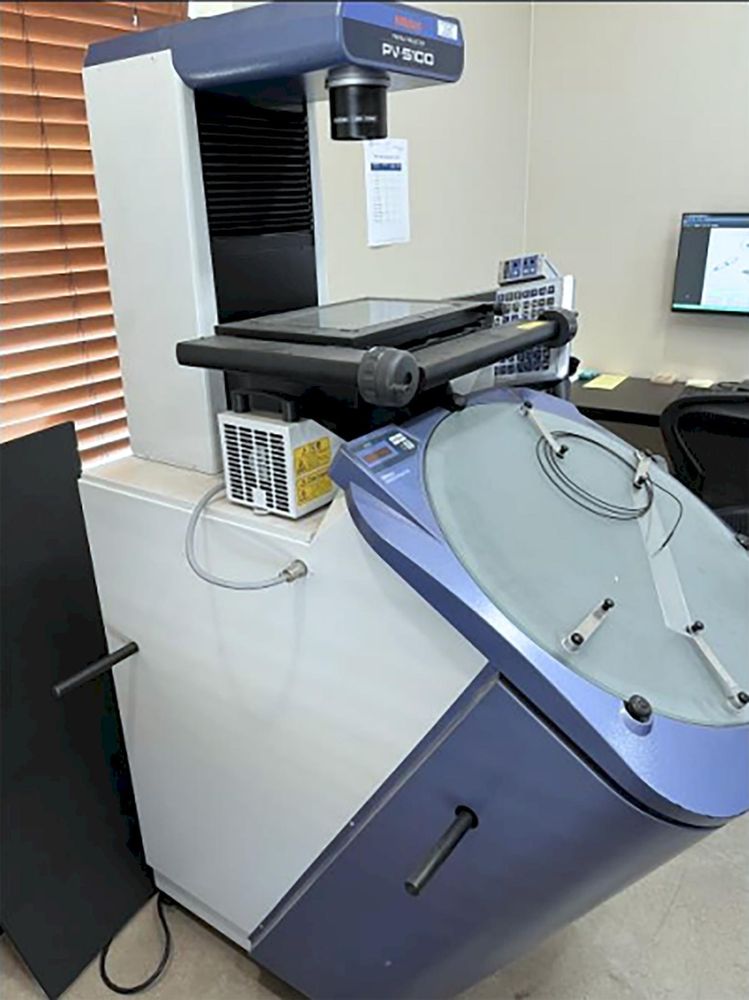

Mitutoyo PV-5100

Type: Optical Comparator
Effective Screen Diameter – 20”
Distance Screen Center from Floor – 35”
Work Table Size – 15” x 9.8”
Effective Table Area – 10.5” x 6.7”
XY Range – 8” x 4”
Focus Travel – 6.3”
Max Workpiece Table Load – 11 Lbs.
Contour and Surface Illumination – Halogen 24V 150W (FCS)
Electrics – 1/60/120VAC with Cord & Plug
Dimensions including DRO – 32.7” LR x 42.1” FB x 59.9” H
Net Weight, Approx – 425 Lbs.
QM-Data Computational Digital Readout
Opto Eye Edge Sensing
Digital Angle Display
1 Lens - 10X Magnification
Glass Crosshair Chart with Clips
Dual Surface Illuminators
Excellent Condition and Appearance
