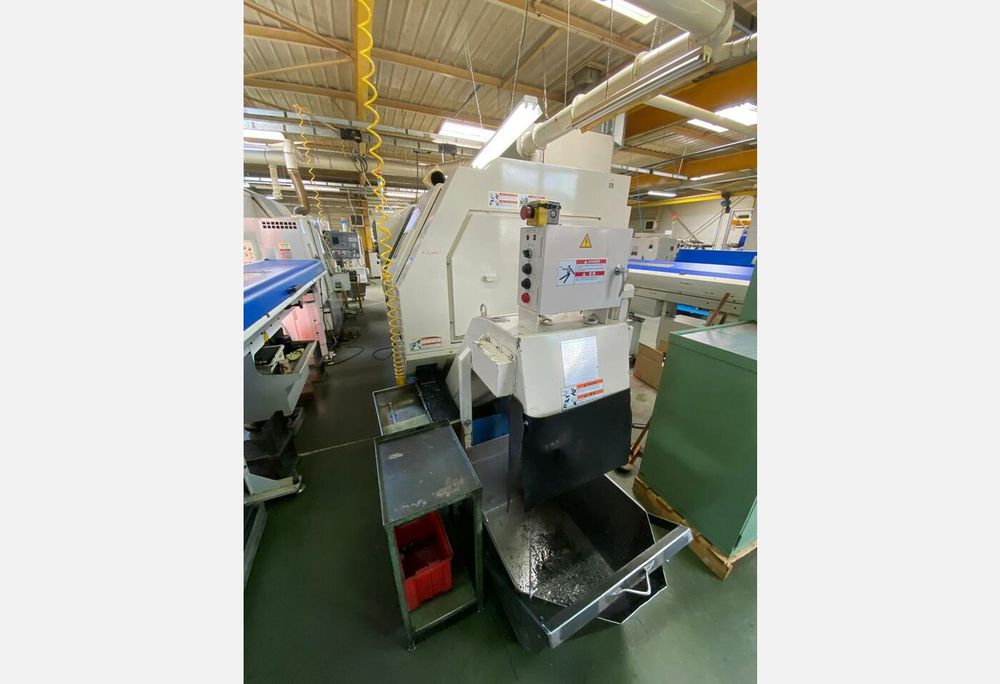

Miyano FANUC 18iTB 5000 rpm BNE 51 SY 7 Axis

X1 Travel: 150 mm
Y Travel: ±40 mm
Z1 Travel: 380 mm
X2 Travel: 115 mm
Z2 Travel: 125 mm
C-axis (main spindle): 360,000 positions
C-axis (sub spindle): 360,000 positions
Control: FANUC 18iTB
Bar Diameter (main spindle): 51 mm
Spindle Power (main spindle): 11 kW
Spindle Nose Type (main spindle): A2-6"
Spindle Speed (main spindle): 5000 rpm
Bar Diameter (sub spindle): 42 mm
Spindle Power (sub spindle): 5.5 kW
Spindle Nose Type (sub spindle): A2-5"
Spindle Speed (sub spindle): 5000 rpm
Upper Turret Positions: 12
Upper Turret Motorized Positions: 6
Lower Turret Positions: 10
Lower Turret Motorized Positions: 5

Lubrication tank with pump
Parts collector
Chip conveyor
Barloader IEMCA BOSS 551-E
