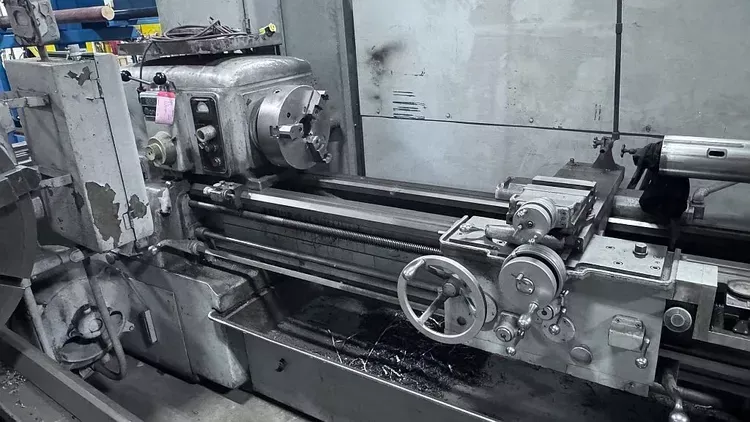

Monarch Engine Lathe 1,800 RPM 16X54

Ref : 2757153-3-MT

Condition : Used

Manufacturer : Monarch

Type : Engine Lathe

Spindle Speed : 1,800 RPM

Model : 16X54

Year(s) : 1968

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing over bed: 16.5"
Swing over cross slide: 10"
Distance between centers: 54"
Spindle speeds: 30–1,800 RPM
Spindle bore: 2.0625"
Spindle nose: D1-6 camlock
Threading range: 1.5–92 TPI
Feeds: 0.0011–0.070 in/rev
Tailstock quill diameter: 2.875"
Tailstock quill travel: 9"
Tailstock quill taper: #4 Morse taper
Horsepower: 15 HP
Electrical: 220/440 V, 3-phase, 60 Hz
Dimensions: 10' L x 4' W x 4' H
Weight: 7,990 lbs
