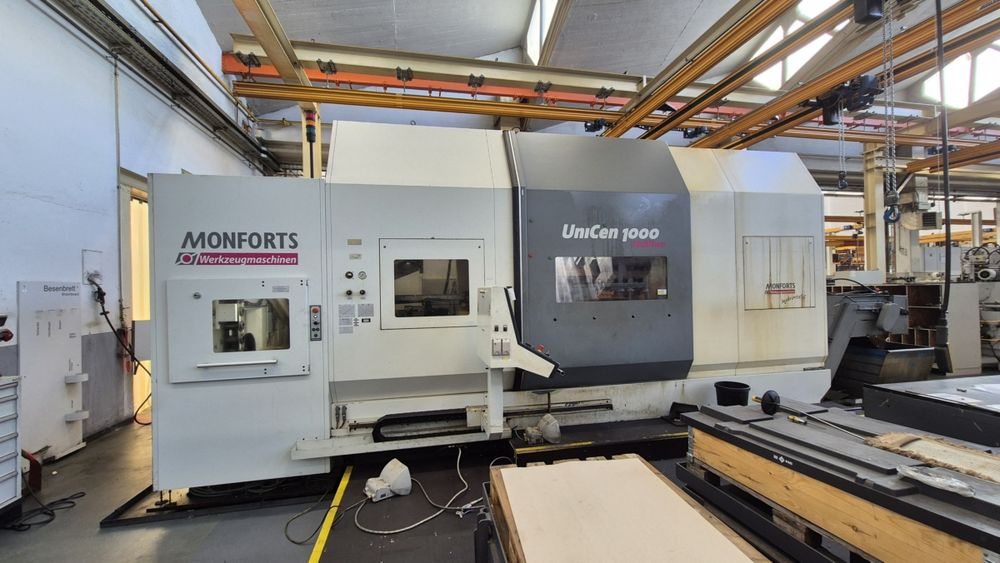

Monforts Siemens 840 D 10000 rpm UniCen 1000 MultiTurn 3 Axis

Control: Siemens 840 D
C axis
B axis
Y axis
Turning diameter: 1000 mm
Turning length: 1500 mm
Swing over bed: 1000 mm
Swing over slide rest: 800 mm
Max workpiece weight between centers: 2000 kg
Main spindle speed: 2000 rpm
Main spindle motor: 62 kW
Transmission ratio: 4
Milling spindle motor: 37 kW
Milling spindle speed range: 25–10000 rpm
Power requirement: 82 kVA
Machine dimensions (L × W × H): 8.2 × 5.3 × 3.6 m
Machine weight: 29,000 kg
Swiveling milling head (B axis), HSK-A63
8-station lower turret for driven tools
60-station tool changer
NC-controlled tailstock, quill diameter 150 mm, max quill stroke 180 mm
Hydrostatic longitudinal guide in Z axis
Coolant system with paper belt filter
Chip conveyor
Oil cooler (Schimpke)
Extraction system
Power chuck, diameter 500 mm (FORKARDT)
Extensive overhaul since November 2023 (ball screws, motors, clamping elements, control modules, wipers, cables, etc.)
