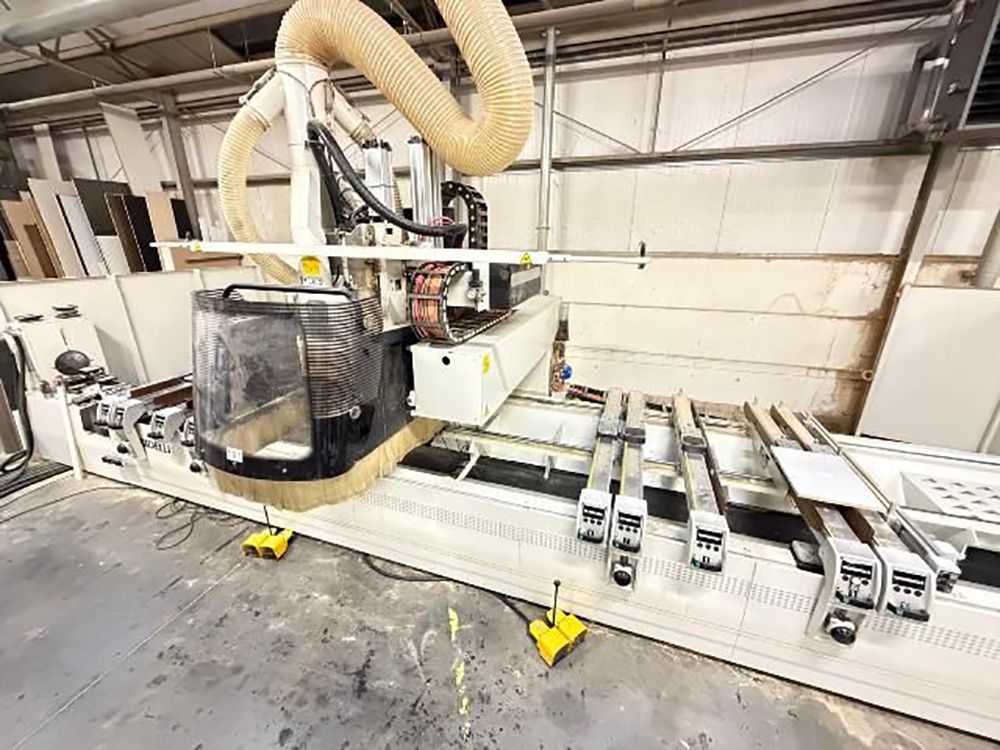

Morbidelli AUTHOR X5.55 EVO 5-AXIS

5-AXIS CNC WORKING CENTER – CE RULES – USED
Working dimensions:
X 5.500 mm
Y 1.700 mm
Z 400 mm
Chip conveyor belt for wastes
Automatic centralized lubrication system
Optimized and centralized dust extraction system
5-axis milling unit 11 kW (15 HP), HSK-63 PRISMA
liquid-cooled electrospindle
Drilling unit with No. 18 vertical spindles and No. 6 horizontal spindles
TV-MORBIDELLI worktable with 10 supports, L = 1,500 mm
Laser device for suction cup positioning
Saw blade Ø 300 mm
No. 2 additional central side stops
No. 2 additional side stops
No. 30 suction cups
Tool magazine with 12 positions
Becker vacuum pump 250 m³/h (year 2022)
NUM CNC control
No. 10 lifting devices to assist loading
Voltage: 400 V / 50 Hz
