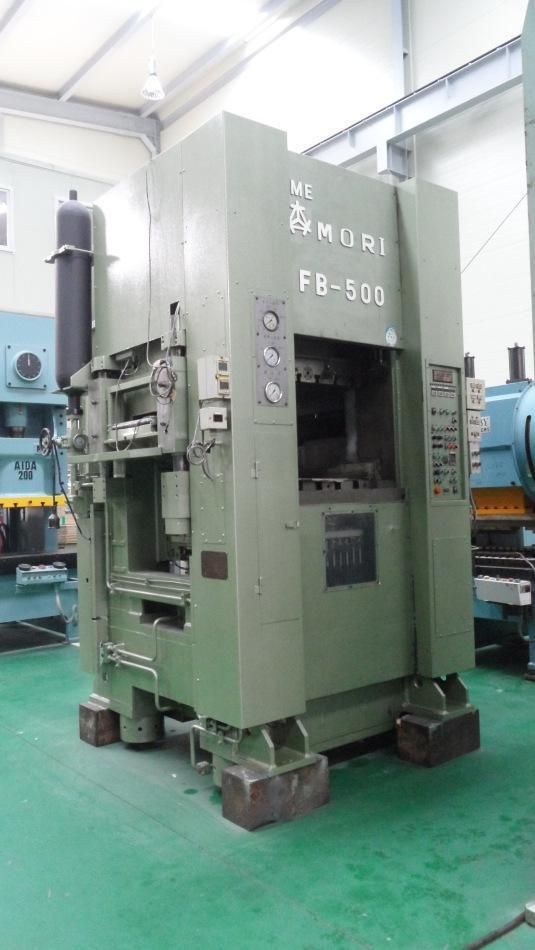

Mori FB 500 500 tons

Total Press Force: 500 tons
V-Ring Force: 250 tons (max.)
Counter Pressure: 125 tons (max.)
Stripping Force: 60 tons
Knock-Out Force: 30 tons
Strokes Per Minute (unloaded): 40 SPM
Working Stroke: 30 – 100 mm
Maximum Slide Stroke: 280 mm
V-Ring Stroke: 40 mm
Counter Stroke: 40 mm (max.)
Cutting Speed: 3 – 45 mm/s
Fast Approach: 10 – 180 mm/s
Return Speed: up to 40 mm/s
Tool Clamping Area: 900 × 1100 mm (max.)
Upper Insert Ring: Ø400 × 80 mm
Shut Height Max: 400 mm
Shut Height Min: 320 mm
Shut Height Adjustment Range: 0 – 20 mm
V-Ring Diameter: Ø300 mm
Counter Die Diameter: Ø300 mm
Center Support Diameter: Ø50 mm
Scrap Cutter Cutting Force: 40 tons
Scrap Cutter Push Capacity: 150 tons
Feeder Force: 15 tons
Strip Width: up to 300 mm
Strip Thickness: up to 8.0 mm
Feed Pitch: 0 – 400 mm
Coil Straightener Feed: 6.0 × 300 mm
Main Motor Power: 90 HP
Voltage: 220 V
