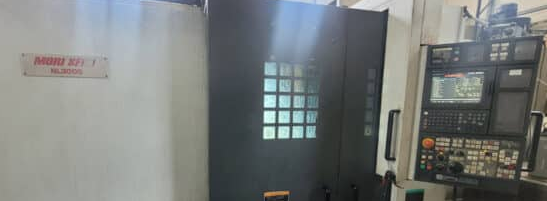

Mori Seiki CNC Control 3000 RPM NL3000/1250 2 Axis

MORI SEIKI NL3000/1250
2006

Max Swing Over Bed: 39.2"
Max Swing Over Cross Slide: 32.5"
Max Swing Over Cover: 27.6"
Max Turning Diameter: 16.5"
Standard Turning Diameter: 12.2"
Max Machining Length: 49.6"
Spindle Speed: 3000 RPM
Spindle Bore: 4.1"
Max Bar Capacity Diameter: 3.5"
Spindle Nose: A2-8
Spindle Motor Power: 30 / 24.7 HP
Spindle Torque: 756 ft-lbs
Number of Tools: 12
Rapid Traverse Rate: 1181 IPM
X-Axis Travel: 11"
Z-Axis Travel: 53.9"
Turret Index Time (Single Step): 0.3 seconds
Tailstock Taper: MT#5
Machine Length: 178"
Machine Width: 90.2"
Machine Height: 94.1"
Machine Weight: 16,720 lbs
CNC Control
12" Chuck
Tailstock
