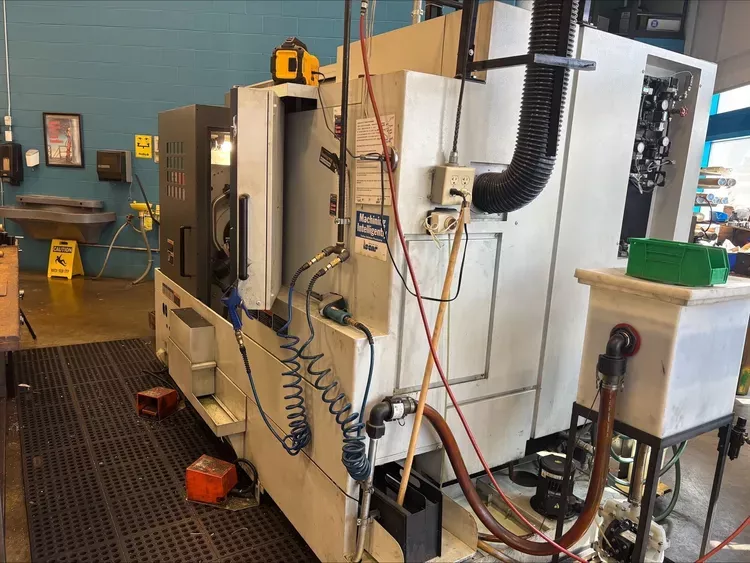

Mori Seiki CNC (MORI MSX 805 III CNC COLOR CONTROL) 4,000 RPM NL 2500SY/700 5 Axis

X1 - Axis Travel: 10.2"
Z1 - Axis Travel: 31.3"
Y1 - Axis Travel: 3.9"
W - Axis Travel Sub Spindle: 28.9"
C - Axis Indexing 1: 0.00
C - Axis Indexing 2: 0.00
Rapid Traverse Rate - X1: 1181 ipm
Rapid Traverse Rate - Z1: 1181 ipm
Rapid Traverse Rate - Y1: 393 ipm
Control: CNC (MORI MSX 805 III CNC COLOR CONTROL)
Bar Capacity 1: 3.1"
Swing Over Bed: 22.8"
Turning Diameter: 14"
Turning Length: 27.7"
Chuck Size 1: 10"
Spindle Nose 1: A2 - 8
Spindle Bore Diameter 1: 3.6"
Spindle Speeds 1: 4,000 RPM
Spindle Horsepower 1: 24.7 hp
Chuck Size 2: 6"
Spindle Nose 2: A2 - 5
Spindle Bore Diameter 2: 1.7"
Spindle Speeds 2: 6,000 RPM
Spindle Horsepower 2: 15 hp
Turret Tool Positions 1: 12 station
Turret Rotary Tool Speeds 1: 6,000 RPM
Turret Rotary Tool Horse Power 1: 7.5 hp
Weight: 13,640 Lbs
Built-in Milling Motor on Turret (BMT)
MSX850III CNC Control
All Standard Static Holders and Wedge Blocks
All Available Manuals
In-Machine Tool Setter
Auto Parts Catcher
MAPPS II Conversational Programming
Thread Cutting/Synchronous Feed
Multi Start Thread Cutting
Retract During Thread Cutting
Variable Lead Threading
Linear, Circular and Helical Interpolation
