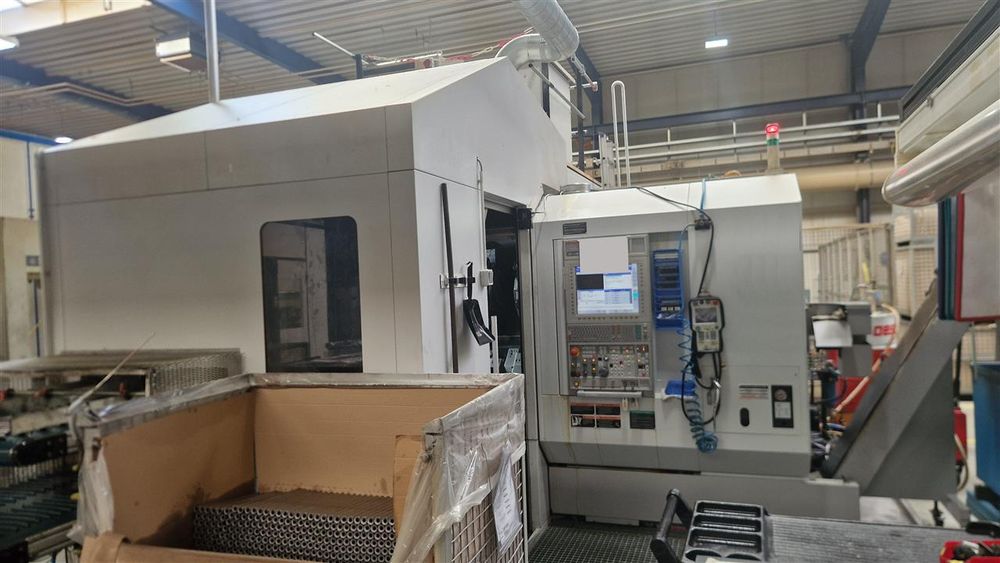

Mori Seiki Control MSX-701 MAPPS IV 5000 rpm NZ 2000 T3Y2 Lehmann-Robot 10 Axis

Travel X1 210 mm
Travel X2 210 mm
Travel X3 210 mm
Travel Y1 110 mm (+65/-45)
Travel Y2 110 mm (+45/-65)
Travel Z1 300 mm
Travel Z2 810 mm
Travel Z3 300 mm
Travel B 870 mm
C-Axis main spindle 0.001°
C-Axis sub spindle 0.001°
Control MSX-701 MAPPS IV
Bar material diameter 65 mm
Max turning diameter 320 mm
Max workpiece diameter 300 mm
Turning length max 810 mm
Greatest pass round over bed 800 mm
Distance between centers 1130 mm
Main spindle speed 5000 rpm
Main spindle power 25/22 kW
Main spindle nose JIS A2-6
Main spindle bore 73 mm
Main spindle bearing diameter 120 mm
Sub spindle speed 5000 rpm
Sub spindle nose JIS A2-6
Sub spindle bore 73 mm
Sub spindle bar capacity 65/52 mm
Sub spindle bearing diameter 120 mm
Number of turrets 3
Tool stations per turret 16
Total tool stations 48
Square tool shank height 20 mm
Boring bar diameter 32 mm
Turret indexing time (4 stations) 0.18 sec
Driven tool positions 48
Driven tool speed 6000 rpm
Driven tool power 7.5/5.5 kW
Driven tool torque 22.5 Nm
Rotary tool machining ability M16 / Ø16
Rapid traverse X 30 m/min
Rapid traverse Y 20 m/min
Rapid traverse Z 50 m/min
Total power requirement 92.7 kVA
Machine weight 9.4 t
Machine dimensions 4000×2800×2400 mm
Chip conveyor
Coolant system
Y-axis 2×
C-axis in main and sub spindle
Part counter
Total counter
Tool setting
Overhead parts gripper with conveyor belt
Spindle 1 chuck SMW KNCS-N 210 / 52 mm
Spindle 2 collet chuck Hainbuch Spanntop Nova Kombi Axfix 65
Robot interface Lehmann Robot with parts belt for feeding and disposal
