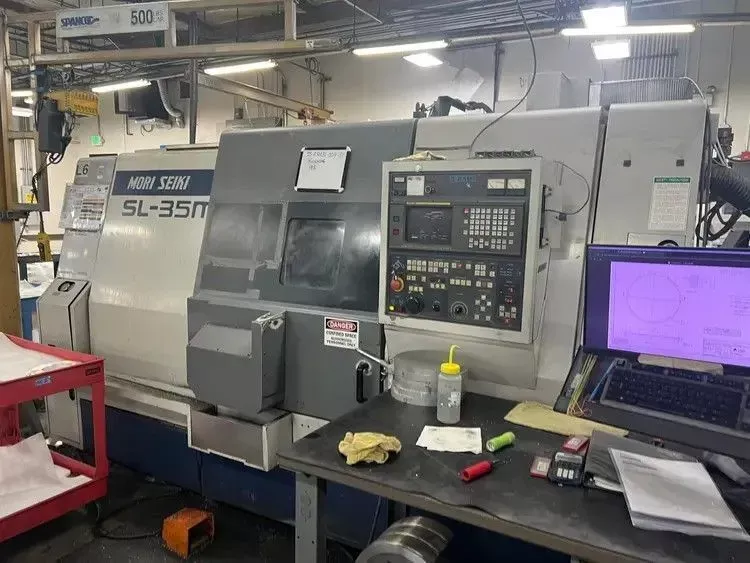

Mori Seiki FANUC 16T CNC Control 2,500 RPM SL-35MC/750 3 Axis

X1-Axis Travel 9.4"
Z1-Axis Travel 33.7"
C1-Axis Travel 0.001°
Swing Over Bed 23.6"
Machining Length 30.7"
Distance Between Centers 32"
Chuck Size 12"
Spindle Nose A2-8
Spindle Bar Capacity 3.5"
Turning Diameter, Shaft Diameter 16.7"
Spindle Speeds 2,500 RPM
Spindle Horsepower 35 hp
Gear Ranges 2
Turret Configuration 12
Turret Rotary Tool Spindle Speed 2,000 RPM
Turret Rotary Tool Horsepower 5 hp
Tailstock Quill Diameter 4.3"
Tailstock Taper MT 4
Tailstock Quill Travel 3.9"
Tailstock Travel 26"
Live Tooling Yes
Sub Spindle No
Rapid Traverse Rate - X1 472 in/min
Rapid Traverse Rate - Z1 590 in/min
Control FANUC 16T CNC Control
Chip Conveyor
Tailstock
Tool Presetter
0.001 C-Axis
All Available Tooling
All Available Manuals
Weight 22,000 lb
