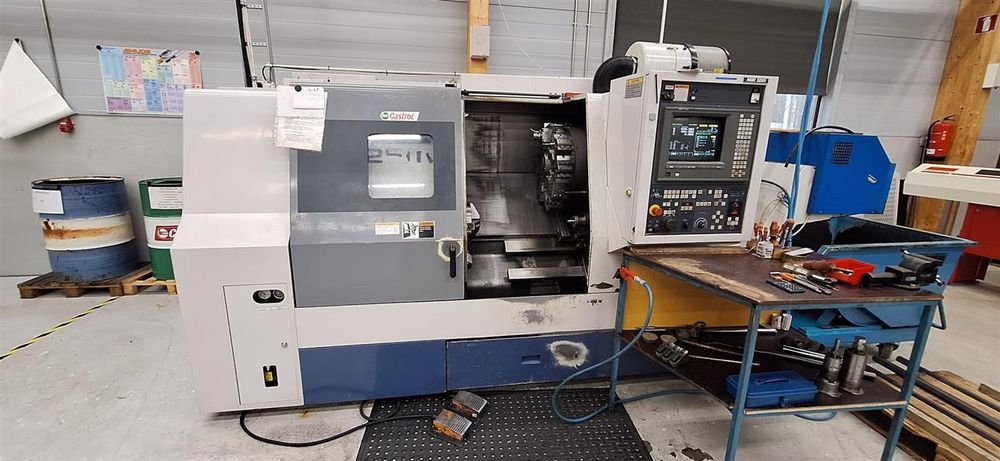

Mori Seiki MSD 516 TB II (Fanuc Dialog) 3500 RPM SL 25MC/500 2 Axis

Turning diameter 340 mm
Turning length 530 mm
Swing diameter 520/350 mm
X/Z rapid power traverse 12/15 m/min
Bar material diameter 65 mm
Chucking diameter Kitagawa B 210 (250 mm)
Spindle drive 18.5 / 15 kW
Spindle speeds 35–3500 RPM
Maximum torque on spindle 490
Spindle nose JIS A2-6
Turret stations 12
Rotary tool stations 6
RPM of rotary tools 80–2000
Tailstock quill taper MT MK5
Tailstock quill stroke 110 mm
Tailstock quill diameter 100 mm
Tailstock travel 491 mm
Bearing for center in tailstock spindle
Control MSD 516 TB II (Fanuc Dialog)
Total power requirement 40 kVA
Machine weight approx. 4.4 t
Machine dimensions approx. 4 x 1.7 m

Chip conveyor
Manual tool eye
Several static and rotary tool holders included
