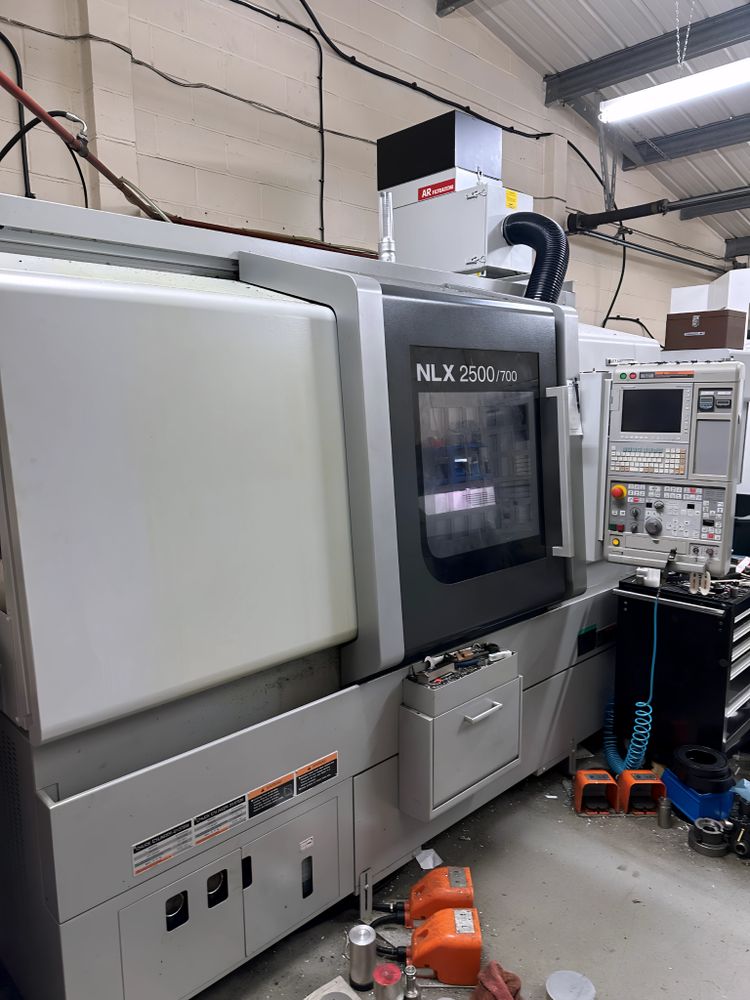

Mori Seiki M730BM 4000 rpm NLX2500SY 700 4 Axis

3 jaw chuck
C axis
Milling
C axis on sub spindle
Coolant
Interlocked guards
Low volt light
Magazine barfeed
Parts catcher
Sub spindle
Swarf conveyor
Tool setter
Tooling
Y-axis

X axis travel: 260mm
Y axis travel: ±50mm
Z axis travel: 795mm
Rapid feedrates (X/Y/Z/B): 30 × 10 × 30 × 30 m/min
C axis: 0.001°
Sub spindle C axis: 0.001°
Control: M730BM
Bar capacity: 80mm
Swing: 920mm
Swing over the cross-slide: 742mm
Maximum cutting diameter: 366mm
Standard cutting diameter: 271mm
Maximum cutting length: 705mm
Spindle speed: 4000 rpm
Spindle motor power: 18.5/15kW
Spindle nose: A2-8
Sub spindle speed: 6000 rpm
Sub spindle motor power: 11/7.5kW
Sub spindle bore: 43mm
Sub spindle nose: A2-5
Sub spindle stroke: 734mm
Milling motor power: 5.5kW
Milling RPM: 10,000 rpm
Chuck size: 200mm
Tool size: 25 × 25mm
Turret positions: 12 station
Machine dimensions: 3994 × 2080 × 2187mm
Machine weight: 6360kg
